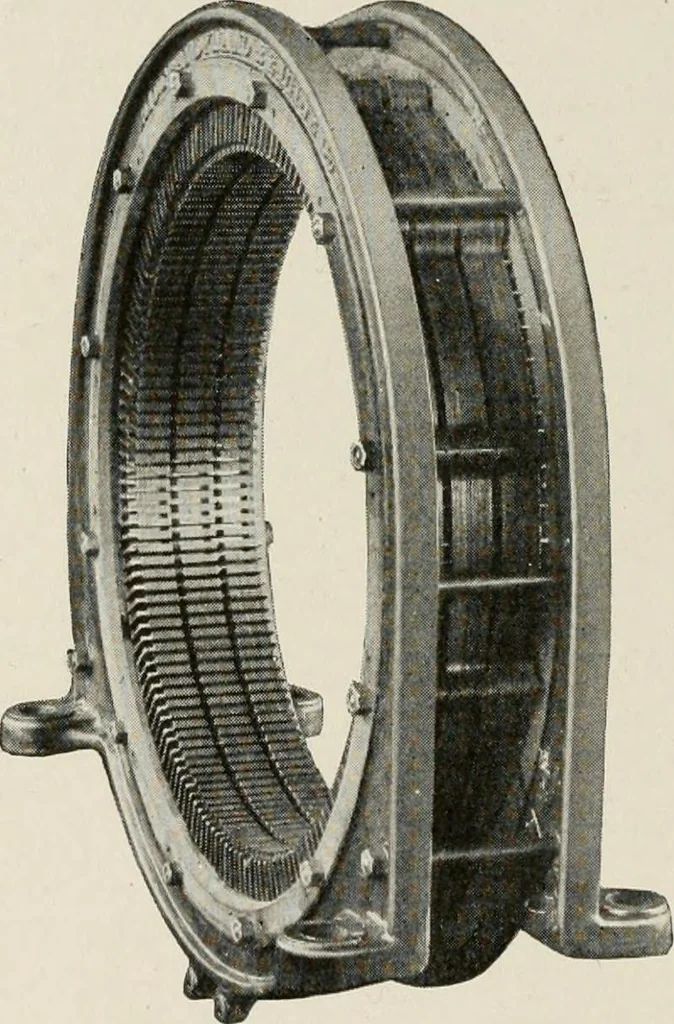

etween heavy brass end pieces and arebolted to the spider by stud bolts which screw into the poles and passthrough the rim of the spider. The field of a belted machine con-sists of a laminated steel core mounted on a heavy cast-iron hub andclamped between substantial end plates. In the periphery of… … Fig. 155. Ridgway Armature Core Completed 366 TYPES OF GENERATORS AND MOTORS 121
