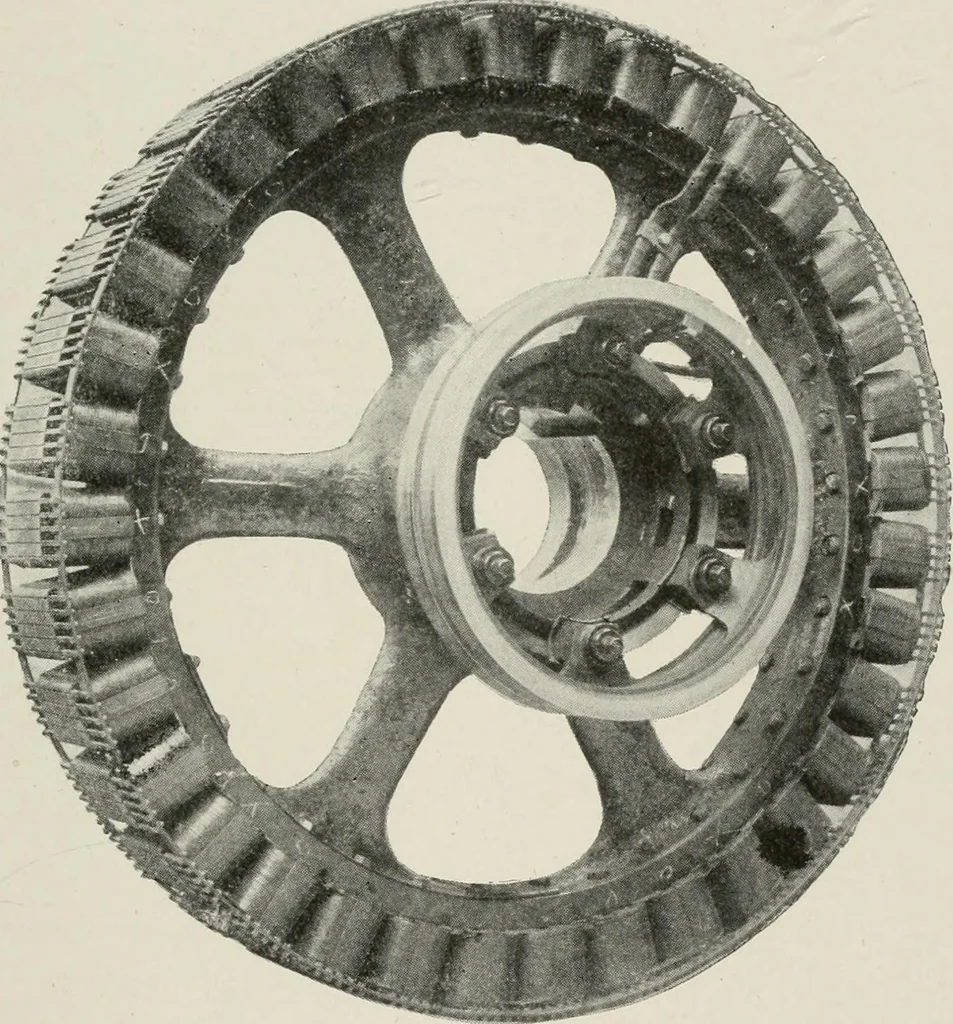

r winding is provided on the field poles. 372 TYPES OF GENERATORS AND MOTORS 127 This winding, shown in Fig. 164, consists of a series of copper barsembedded in the pole faces with ends short-circuited similarly to thesquirrel-cage winding of certain types of induction motors. Itserves as an… … Fig. 164. Rotor of Type E Alternator with Cage-Damper Winding Courtesy of Westinghouse Electric & AIaniifacturing Company as type E alternators but differ principally in the construction ofthe rotors, depending upon the centrifugal stresses produced. At the lowest peripheral speeds, the rotor…
