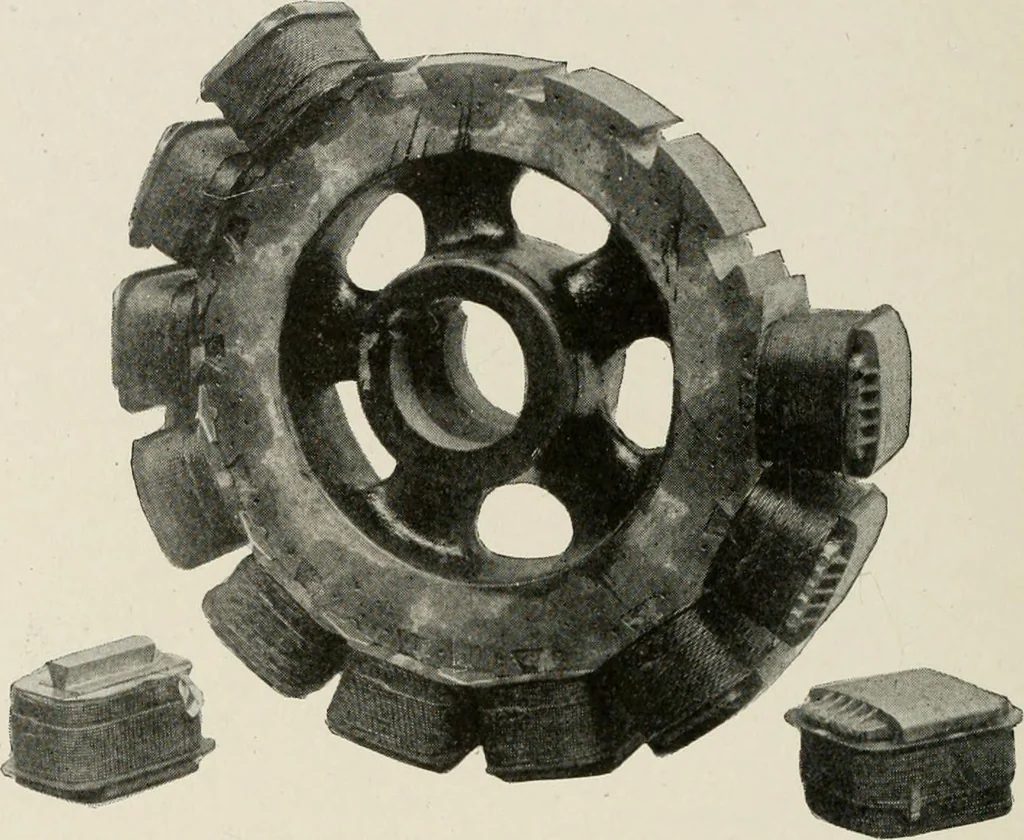

t the lowest peripheral speeds, the rotor construction employedis the same as for the engine-type alternators with bolted poles. Fig.165 shows a construction wherein poles are dovetailed into the rimof a cast spider. IMachines of a larger diameter have their rotorsbuilt as shown in Fig. 166, where… … Fig. 165. Westinghouse Rotor Construction Showing Cast Spider and Dovetailed Pole Pieces Rolled-steel plates form thespider and the poles aredovetailed to the spider. The stator and arma-ture constructions of thesemachines are similar to theengine type. The water-wheel alternators are de-signed…
