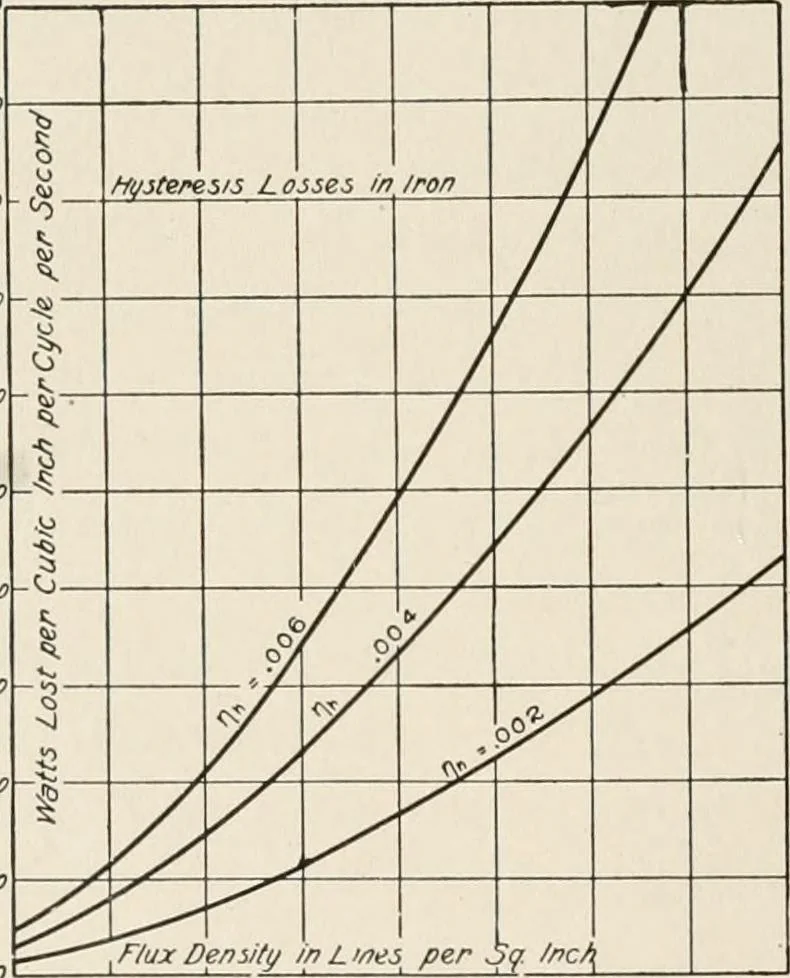

graph-ically the hysteresis losses inwatts per cubic inch of ironper cycle per second, withvarious hysteretic constants.The eddy-current loss iniron cores varies directly as thesquare of the thickness of theiron laminse, as the squareof the maximum flux-density,and as the square of thefrequency.… … We = 40.6 X t\X B Xf X 10-^2wherein lie = Watts loss due to eddy currents per cubic inch of iron; ip = Thickness of the iron plates, in inches; and the othersymbols have the meanings previously assigned. Fig. 18 exhibits values of iVq graphically for various thicknessesof iron over wide ranges of…
