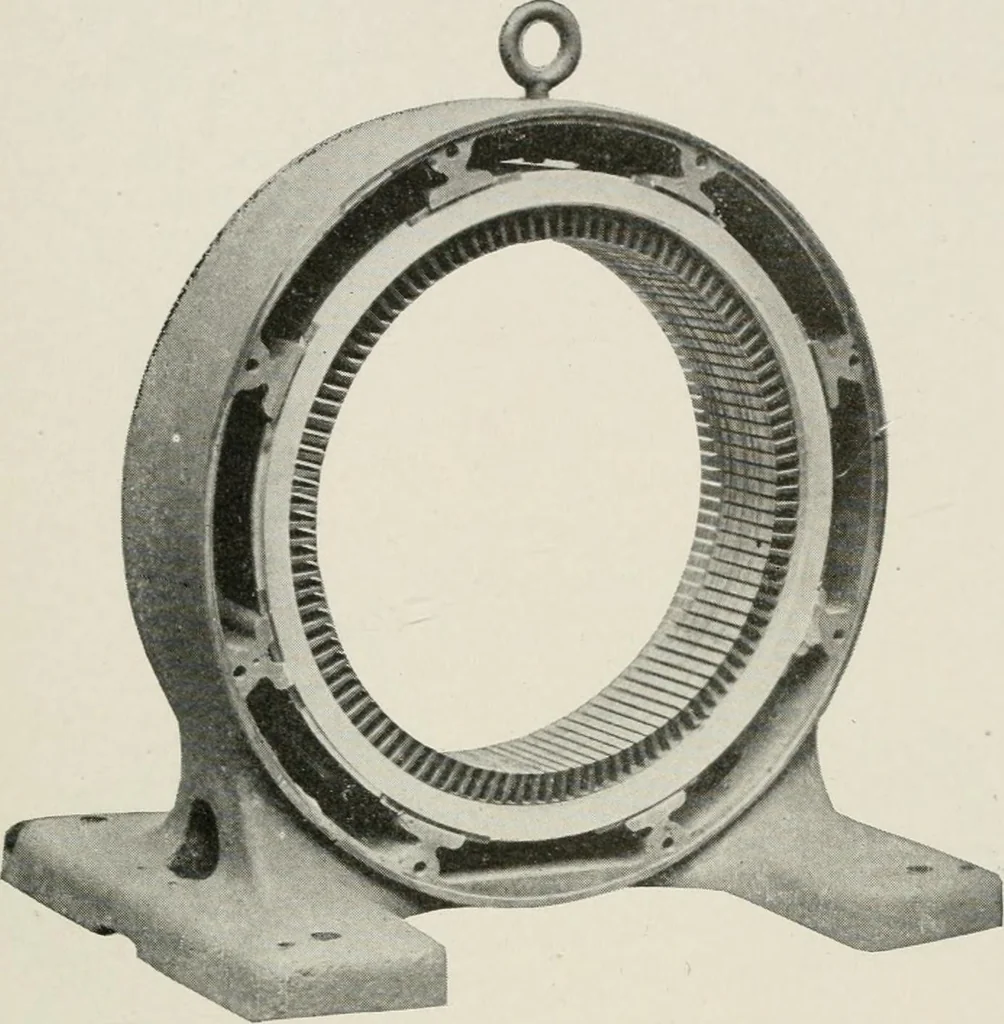

builtup of sheet-steel laminations, enameled before assembling, clampedbetween cast-iron end plates, and keyed or dovetailed to lugs castinside the frame as shown in Fig. 207. The stator windings are form-wound coils of insulated wire or strap. For the lower voltagemachines a semi-enclosed… … Fig. 207. Primary ofWestinghouse Tvoe HF Motor Without Winding
