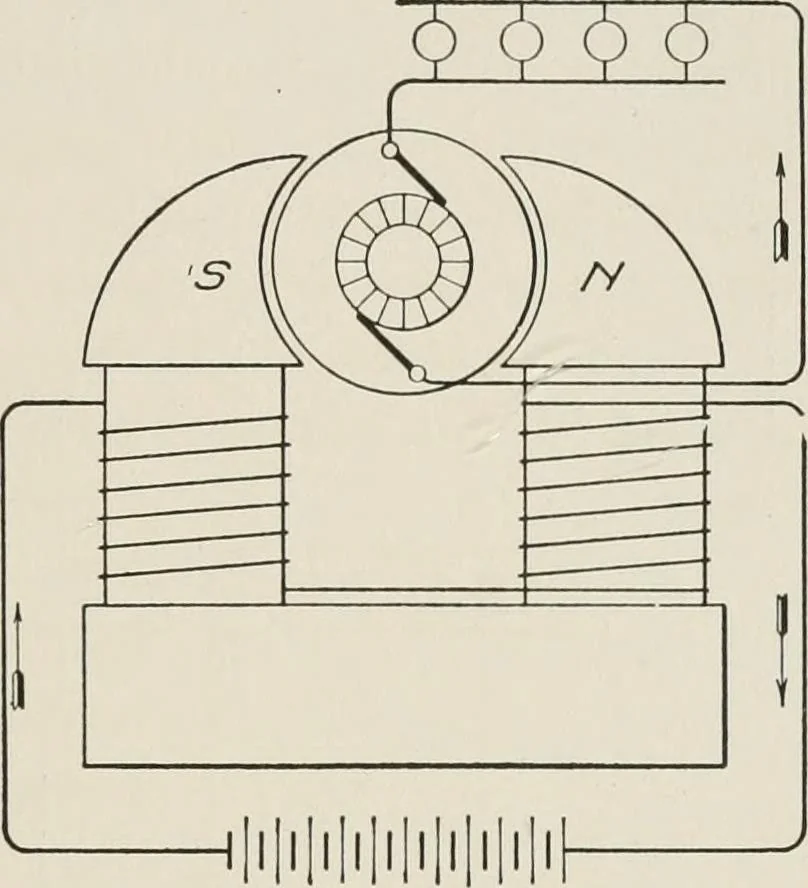

Fig. 38. Diagram of Magneto 44 PRINCIPLES 35 … Fig. 39. Separately-Excited GeneratorWindings magnetic flux through the armature. The latter is altered in thecase of magneto-machines by shunting the flux away from the arma-ture through an auxiliary pieceof iron. In the case of separatelyexcited machines, the flux isvaried by regulating the…
