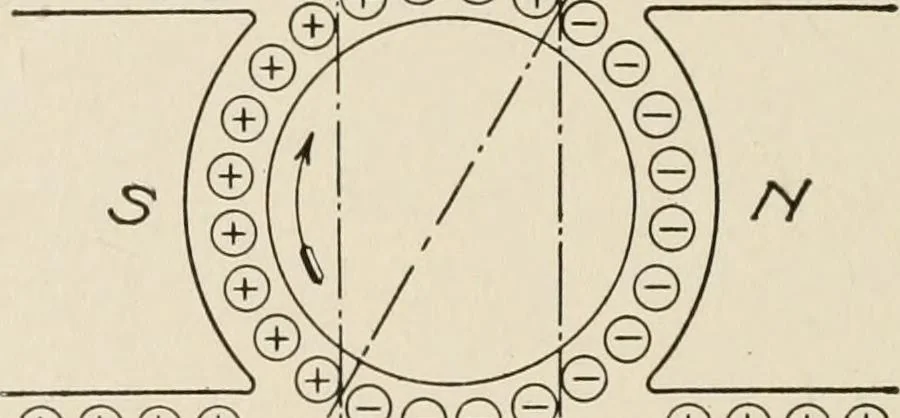

e resultant effect is to produce in the armature a magnetomotiveforce opposed to that of the field-winding. Considering Fig. 66,wherein the brushes are supposed to be shifted to the line mi, theremainder of the figure being as before, it is seen that the currentsare flowing toward the observer in… … ©00© /P©0©^ Fig. 66, ©©©©©©©© Diagram Showing Demagnetizing Effectof Armature across the section of the armature and through the points of com-mutation. The armature conductors are thus divided into twobands, those to the right of the line ad and to the left of the linehe tending to cross-magnetize…
