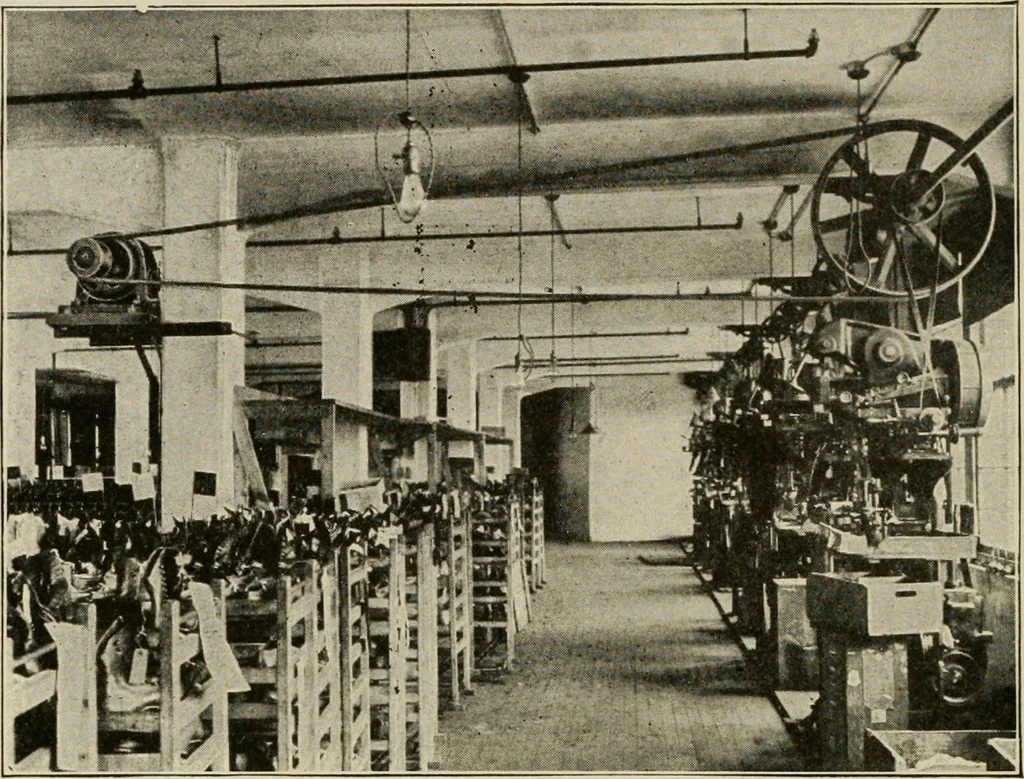

4~ and a lO-horsepower motor, belted to theunhairing and fleshing machines. Fig. 30 shows a setting-outmachine driven by a 5-horsepower motor connected through a silentchain drive to a jack shaft and from the jack shaft to a sprocketwheel on the machine by means of a loose sprocket chain. 91 … Fig. 31. Small Motor Driving Countershaft for Heeling MachinesCourtesy oj General Electric Company
