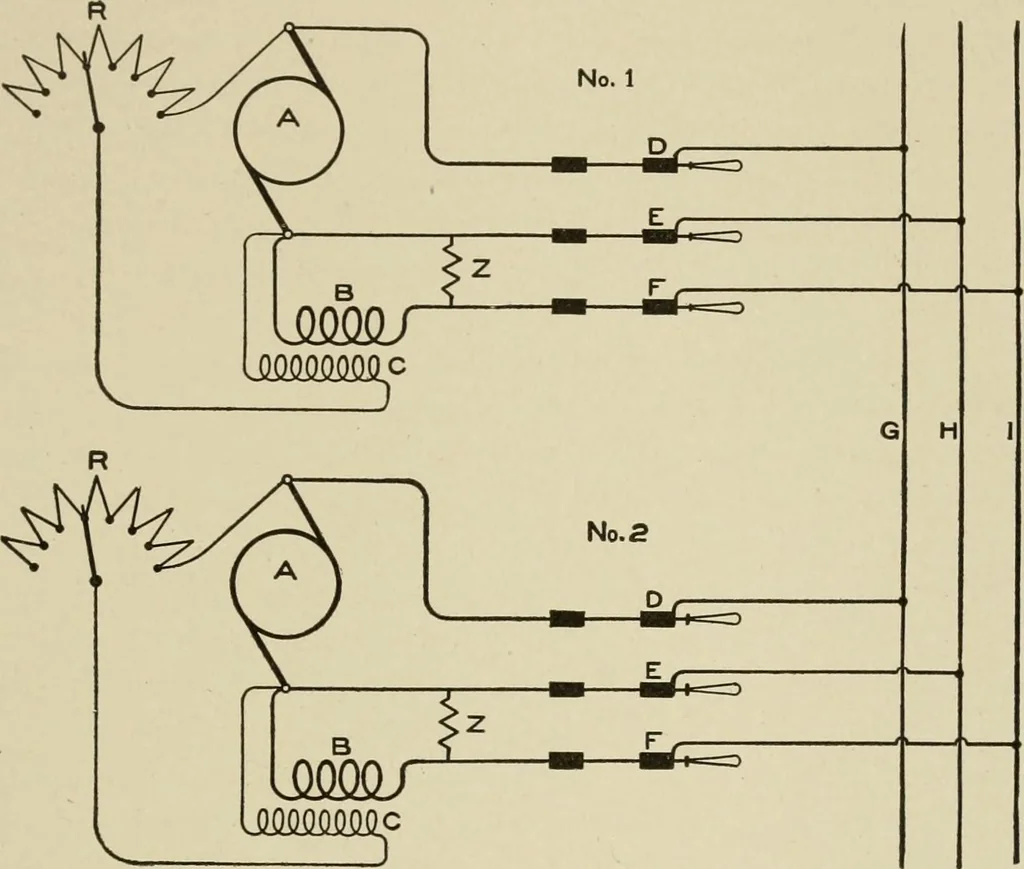

Wiring Diagram for Two Shunt-W^ound Generators in Parallel 140 MANAGEMENT OF DYNAMO-ELECTRIC MACHINERY 19 the shunt field; D, E, and F are single-pole single-throw switches;G, H, and / are buses; and R is the shunt-field rheostat. Theswitches D and F connect the main leads from the machine… … Fig. 11. Wiring Diagram for Two Compound-Wound Generators in Parallel place No. 2 machine in parallel with it. Bring No. 2 machine upto speed and adjust its voltage to about normal. Close switch Fand switch E. This places the series field of No. 2 in parallel withthat of No. 1 and the voltage of…
