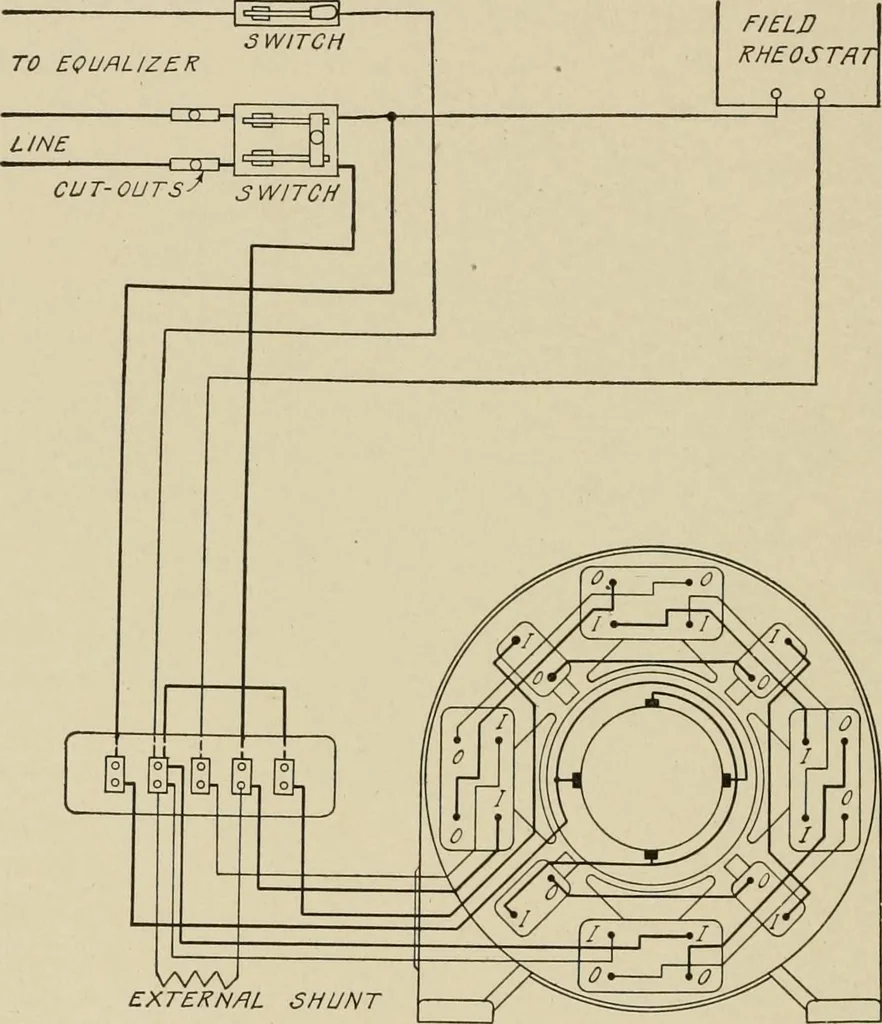

In the same manner the winding onthe commutating poles may have a shunt across its terminals thesame as the series field shunt Z shown in Fig. 9. The same remarksapply to commutating pole motors. 143 22 MANAGEMENT OF DYNAMO-ELECTRIC MACHINERY The object of the commiitating poles is to prevent… … vwve:xtern/^l shunt qbnerfltor connecteb fo^ clockwise rotation Fig. 13. Wiring Diagram for Commutating Four-Polo Compound Generator Location of Brushes on Commutating-Pole Machines. Re-move one brush from a brush holder and in its place insert a fiberbrush of the same dimensions as the brush…
