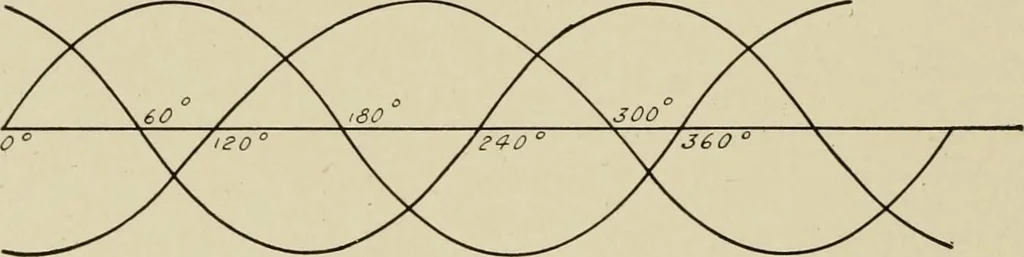

dings connected together, as shown in Fig.37. In this case only three wires are carried out to the distribut-ing system. If the voltage of either phase is equal to E, then the 165 44 MANAGEMENT OF DYNAMO-ELECTRIC MACHINERY voltage across the free ends of the inter-connected phase will beequal to… … FHftSC B Fig. 38. Voltage Curves for Threc-Phase Generator Three-Phase Type. Three-phase generators have their arma-ture windings divided into three sets of coils so arranged as to pro-duce electromotive forces 120 degrees apart, Fig. 38. Armaturesmay be either Y- or A-connected, Figs. 39 and 40.…
