Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 236

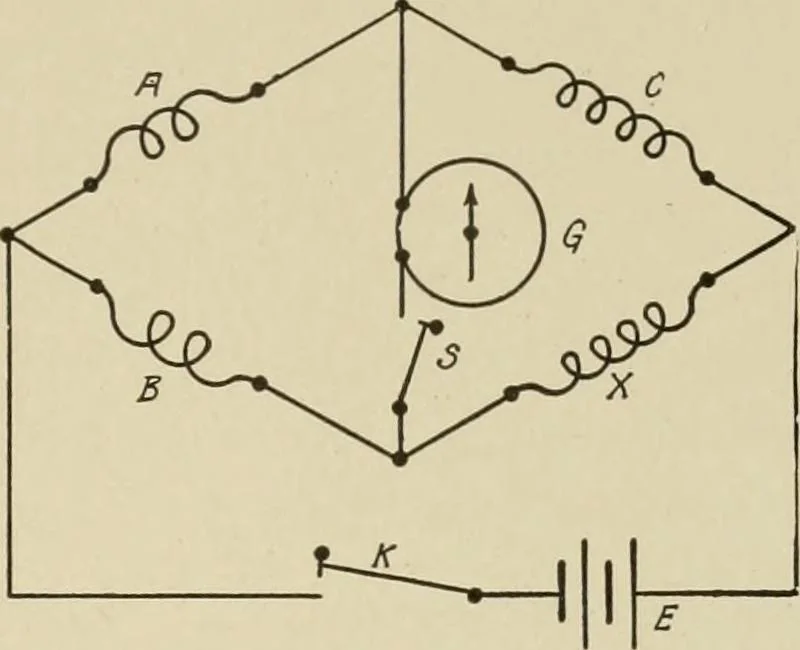

y of one or two cells controlled by a key K, all being connected as shown. The resistance C is varied until the galvanometer shows no deflection when the keys K and 8 are closed in the order named. If the key S should be closed before K, or at the same moment, the inductive effect might produce a… … Fig. 73. Wheatstone Bridge Diagram
Electrical engineering
