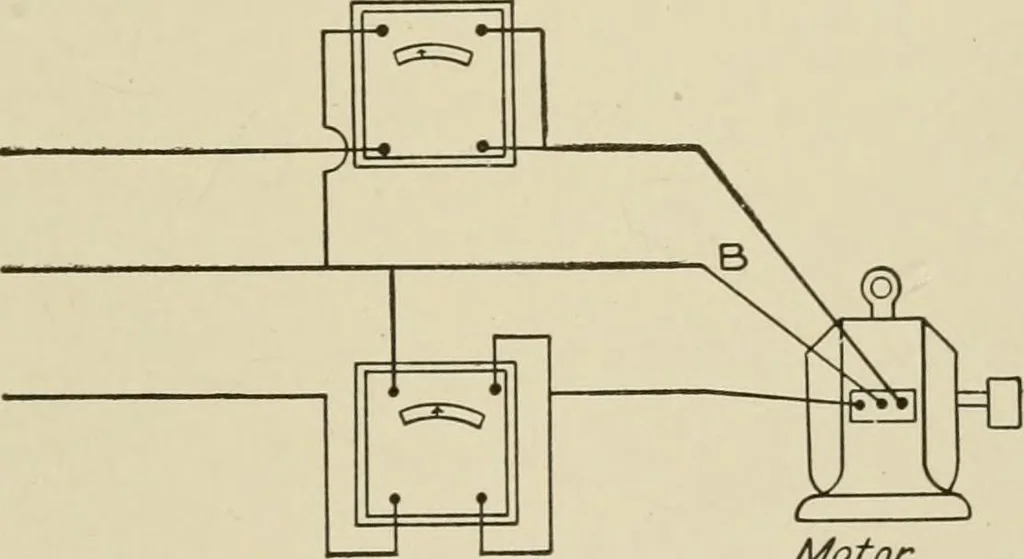

at a given instant tothe product of these two fields; so that the reading of the instru-ment, which depends on the mean value of the couple, will be pro-portional to the mean power, and, by providing the instrumentwith the proper scale, it will read directly in watts. Single-Phase Circuit. In Fig.… … MoforFig. 86. Wiring Diagram for Testing Power Input in Two-Phase Circuit be determined; CD, the terminals of the thick-wire coil (current-coil) of the wattmeter; and EF, the voltage- or pressure-coil ter-minals. When connected as above indicated, the wattmeter in-dicates directly in watts the…
