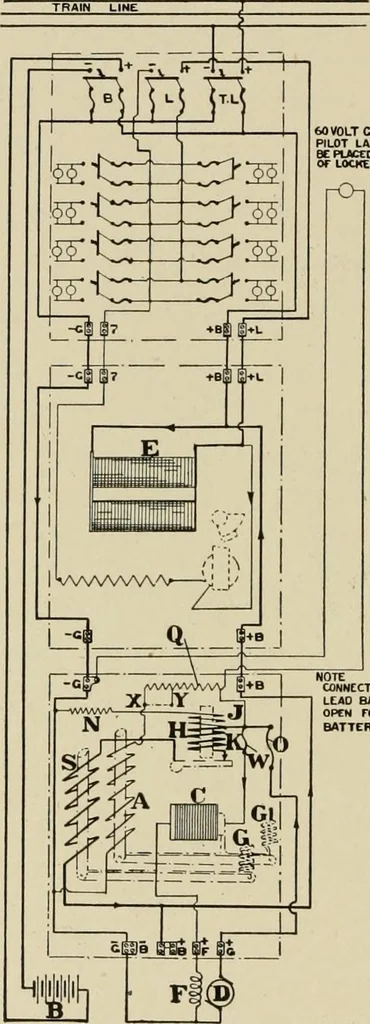

age rises, the current tapersoff so that the full output of thedynamo is no longer required,and the series coil arm movesout of engagement with the volt-age coil arm and rests againstits stop. The voltage coil Athen prevents the voltage fromrising above the voltage for which the regulator is set.… … UNNCCT XYTO CHIRCELt«D B*TTEfnOPTN FOR rOIS^riBATTERY Fig. 68. Wiring Diagram for Lamp Regu-lator in CarCourtesy of Safety Car Heating and LightingCompany 860 ELECTRIC LIGHTING 97 In a 30-volt equipment having sixteen cells, the battery will beprotected from overcharge if the dynamo gives 40 volts…
