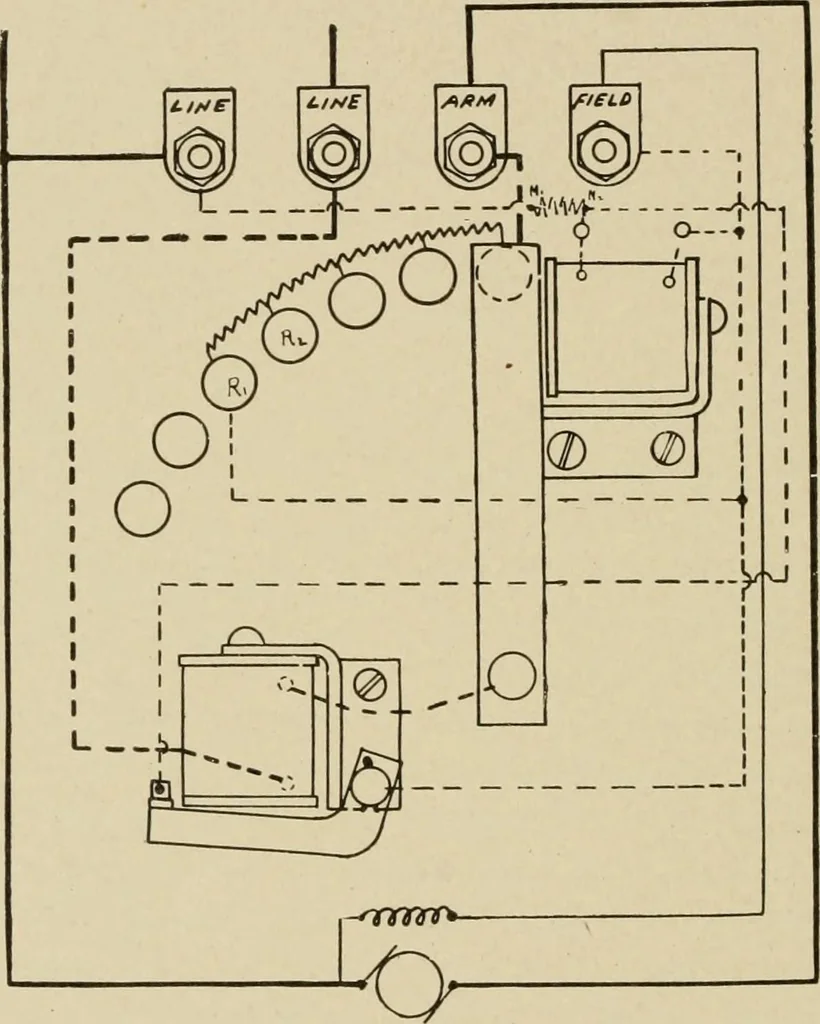

^smmsmMy& Fig. 23. Starting-Box Connections. 41 32 DIRECT-CURRENT MOTORS the necessary protection but saving the annoyance of frequentlyblown fuses. Fig. 23 shows the connections of a rheostat equippedwith an overload release of this type. OPERATION OF MOTOR To Start the Motor. In starting the… … Fig. 23. Connections of Motor-Starting Rheostat with No-Voltage and Overload Release. General Electric Company, Schenectady, N. Y. nection, as shovv-n in Fig. 22, this will either establish the currentthrough the field, or will merely bring the line voltage up to the start-ing box. 2. Move the…
