Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 92

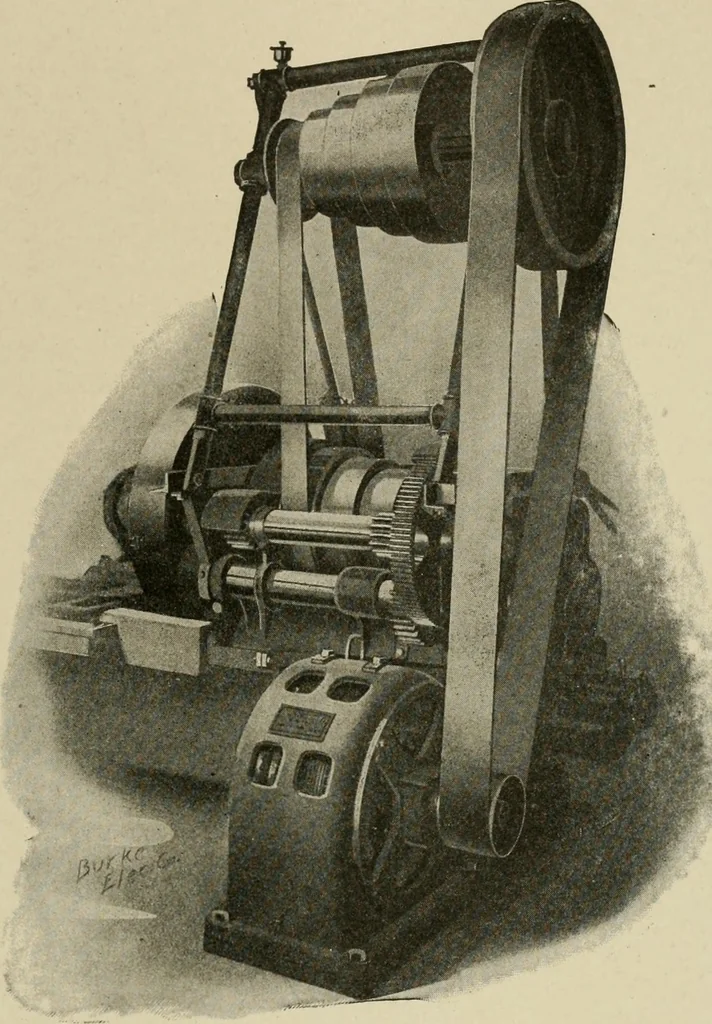

MOTOR-DRIVEN MACHINERY 9 induction motor. In Fig. 6 is shown a General Electric inductionmotor directly connected to a planer. In many instances it is found desirable to apply the electricdrive to machines ori;inally designed for the overhead mechanical … Fig. 8. Beltei Motor Drive Showing Countershaft SupportCourtesy of Burke Electric Company drive. In Figs. 7 and 8 are two coupling arrangements by the Burkemethod. The upper cone pulley rests on pipe brackets, a methodwhich makes it possible to change from the mechanical to the indi-vidual motor…
