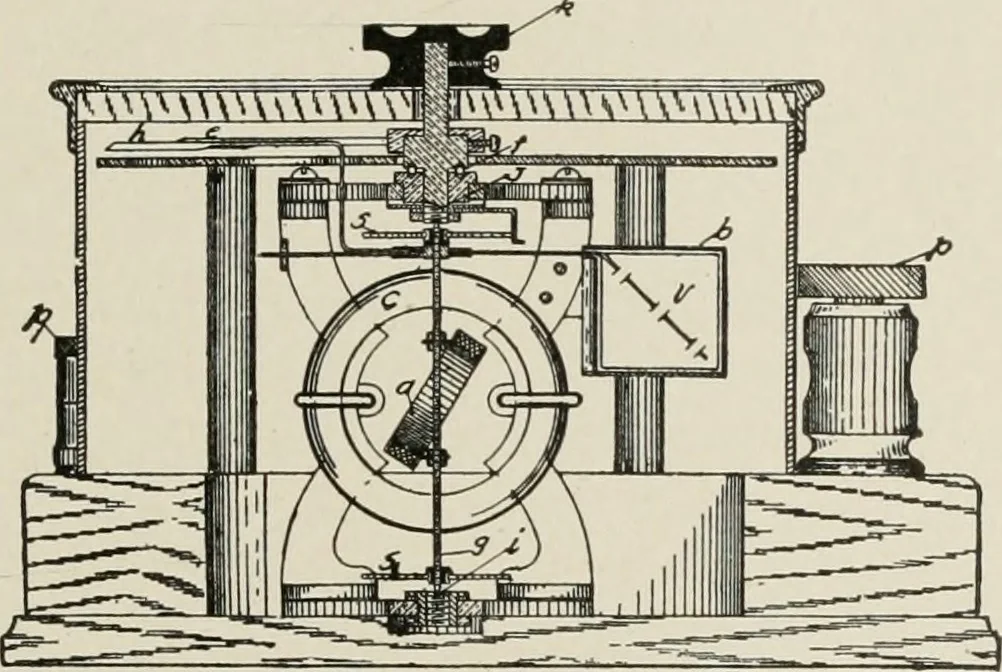

s rotated by the torsion headj by means of the rubber covered nut k projecting through the glasstop of the wattmeter. The spring Si has its outer convolution securedto a lever which projects through the side of the case. By adjustingthis lever, correction to zero may be made. The staff g is of… … Fig. 88. Vertical Section of Roller-SmithPortable Torsion Wattmeter in manipulation is obviated. Vibrations of the movable element aredampened by the vane which is enclosed in the nearly air-tight box b.On the side opposite the dampening vane and just counter-balancing its weight is the needle h…
