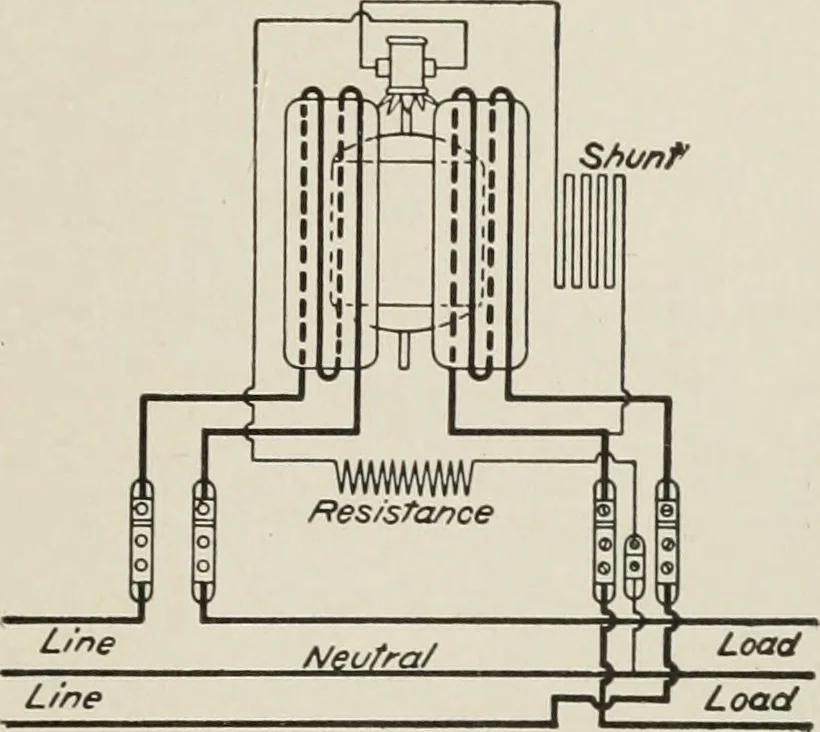

r that is less thanthe delivered power for which thedamping magnets are adjusted togive a correct reading. J^ig. 90 shows a general viewof a Thomson watt-hour meter.Fig. 91 shows the connectionsof a Thomson watt-hour meterto two-wire supply mains, andFig. 92 shows the connections tothree-wire… … Fig. 92. Thomson Watt-Hour Meter Con-nected to a Three-Wire Current Supply 95 86 ALTERNATING-CURRENT MACHINERY measuring electrical energy. In principle and operation it is merelya small single-phase induction motor having stationary shunt andseries windings so related and arranged with respect to…
