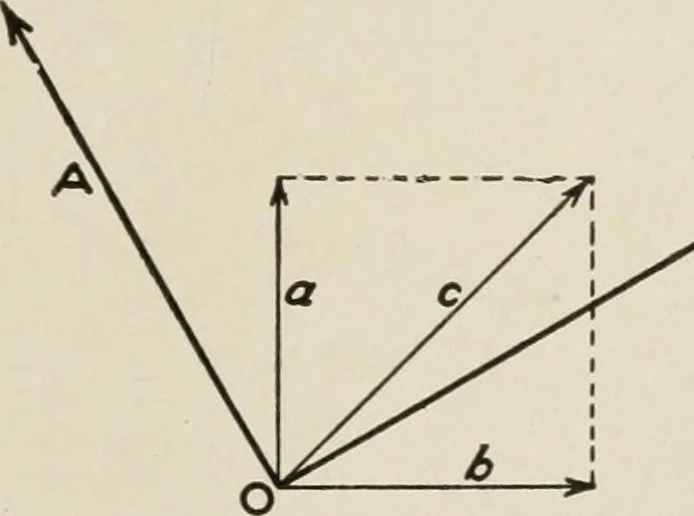

m of a and 6, represents thecurrent in the common main 3. Ifa =b, it is evident that c = THREE=PHASE SYSTEM Three = Phase Alternator. Consider three similar single-phase armatures A, B, and C,mounted side by side on the same shaft and revolved in the same field, each armature having asmany slots as… … Fig. 122. Clock Diagram of E. M. F.s andCurrents for Two-Phase Alternator 133 122 ALTERNATING-CURRENT MACHINERY »©,
