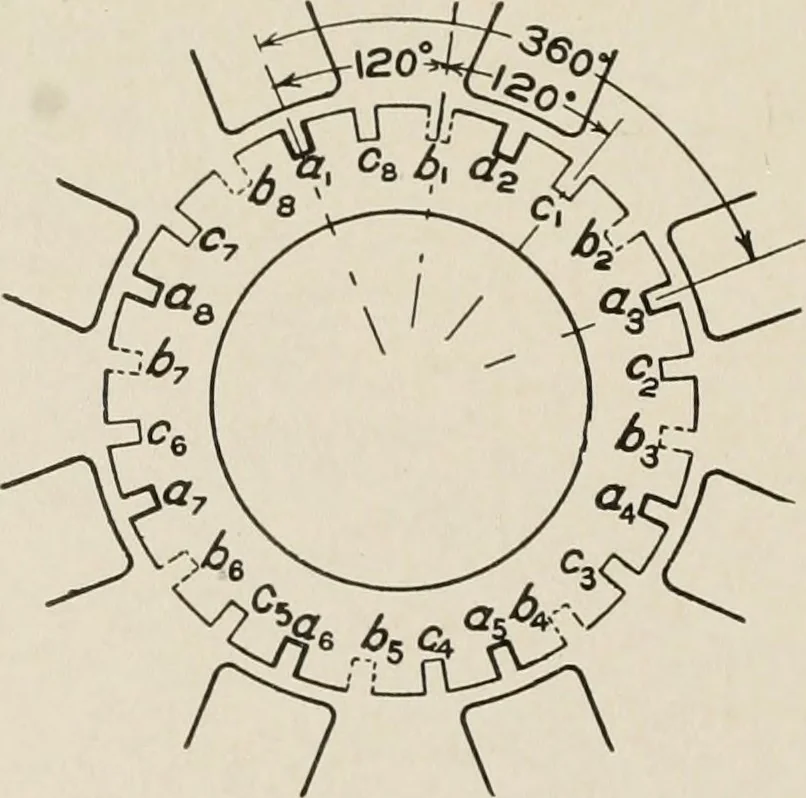

windings A, B, and C are placed upon one and the same armature body.For this purpose the armaturecore has three times as manyslots- as A, B, or C. Fig. 124 shows the arrange-ment of the slots for such a wind-ing. The slots belonging tophase A are drawn in heavylines, and are marked ai, a^,etc.… … Fig. 124. Arrangement of Slots for Three-Phase Alternator Armature up as, etc.for winding C. The windings A, B, and C here described are of the concen-trated type, having only one slot per pole for each winding. Dis- 134 ALTERNATING-CURRENT MACHINERY 123
