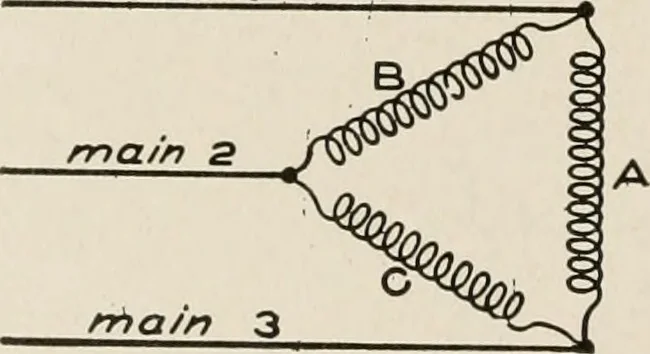

ing to either the Y or the A method. The Y methodof connecting receiving circuits is shown in Fig. 131. One terminal of each receiving circuit is connectedto a main, and the other terminals areconnected together at the neutral pointiV. In this case the current in each re-ceiving circuit is equal to… … Fig. 132. A Method of Connect-ing Receiving Circuits V 3 of mains. 138
