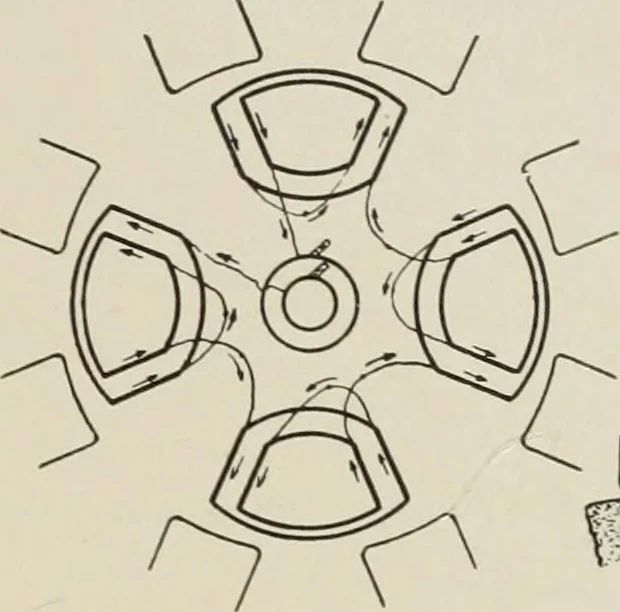

ALTERNATING-CURRENT MACHINERY 143 … of the coils that lie in the slots, and the curved parts represent theends of the coils. The circles at the center of the figure representthe collecting rings, one beingshown inside the other for clear-ness. The arrows represent thedirection of the current at a giveninstant. All electromotive…
