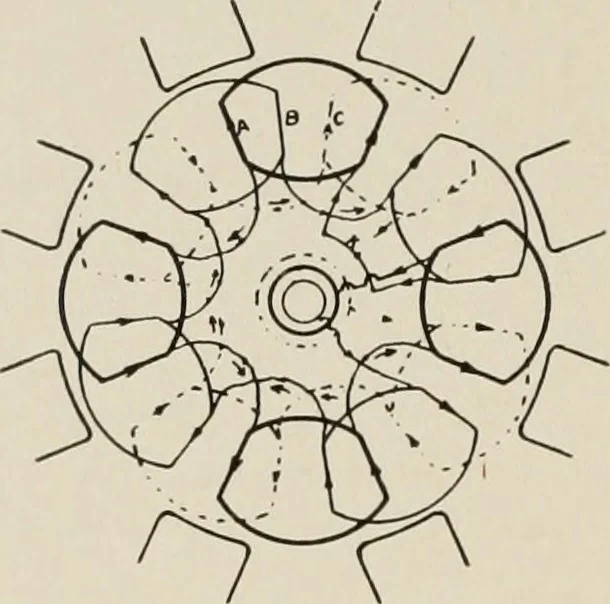

Fig. 145. Two-Phase ConcentratedArmature Winding Fig. 146. Two-Phase Armature Wind-ing, Two Slots Per Pole Per Phase Three=Phase Windings. The three-phase winding consistsof three independent single-phase windings on the same armature, 155 144 ALTERNATING-CURRENT MACHINERY the terminals of the… … V^TT^
