Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 179

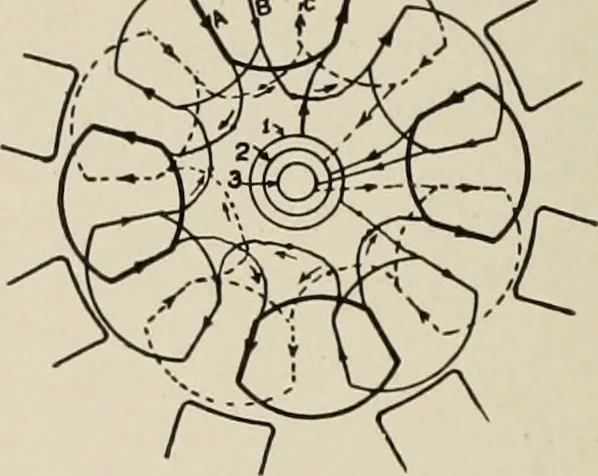

V^TT^ … Fig. 147. Three-Phase Concen-trated Winding Y-Connected Fig. 148. Three-Phase Concen-trated Winding A-Connected 147 shows a three-phase concentrated winding (one slot per pole foreach phase), Y-connected. Fig. 148 shows the same winding A-connected. In Figs. 147 and 148 the winding for phase A is…
Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
