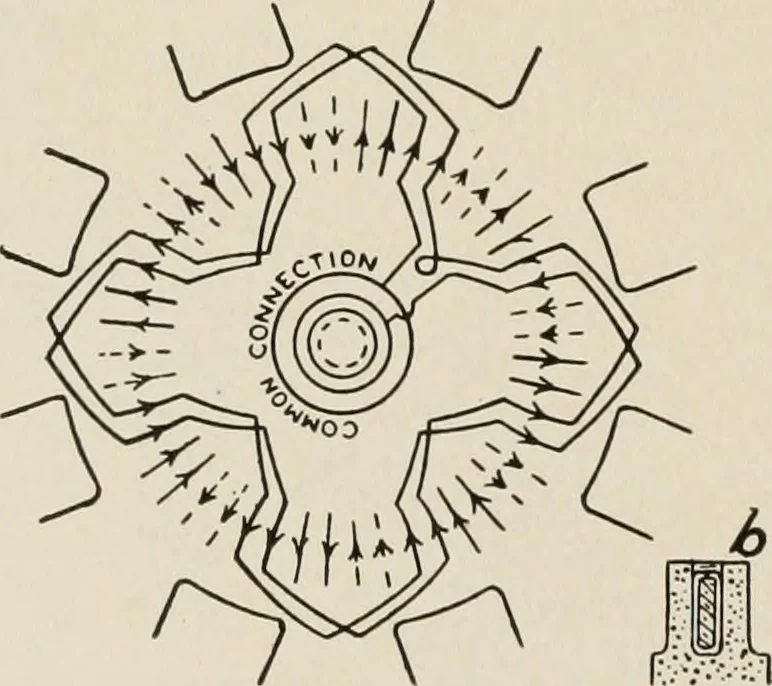

mes as great as the current in ■^•^Jy^^^-^i^^^^.ciieif/d:;^^ ^ each winding in a A-connected armature. Fig. 149 shows a three-phasebar winding distributed in twoslots per pole for each phase.The sketch h, is a sectional viewof one slot containing a single con-ductor in the form of a rectang-ular… … Pig. 149. Three-Phase Bar Winding,Two Slots Per Pole Per Phase 156 ALTERNATING-CURRENT MACHINERY 145 two coils lie in each slot, one above the other. The portions of thecoils represented by full lines lie in the upper parts of the slots, andthe adjacent dotted portions lie in the bottoms of the…
