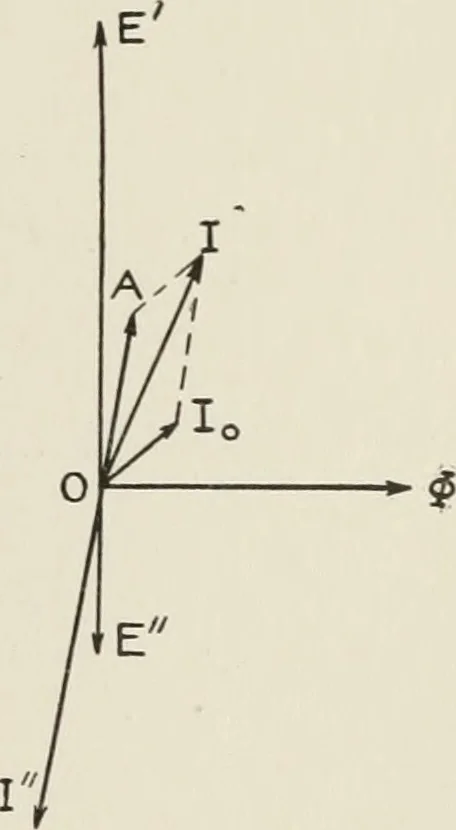

^ turns Zbalances the magnetizing action ZI of thesecondary current. As is evident from Fig.205, the loading of a transformer (non-inductive load) not only increases the valueof the primary current, but reduces its angleof lag behind the primary applied electromotive force. Thus, at zero- … Fig. 205. Clock Diagram for Transformer with Load 253 240 ALTERNATING-CURRENT MACHINERY
