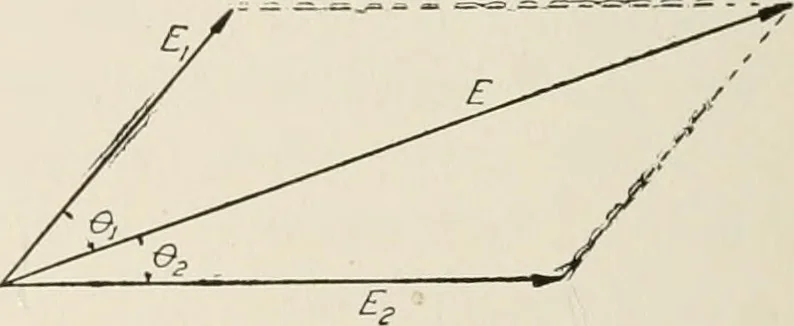

t^ … Fig. 6. Alternating Current ThroughTwo Coils in Series Fig. 7. Vector Diagram of E. M. F. forConditions Shown in Fig. 6. direction of flow. A clear idea of the effects of the rapid changes ofan alternating current may be obtained as follows: Fig. 8 represents an alternator producing alternating…
