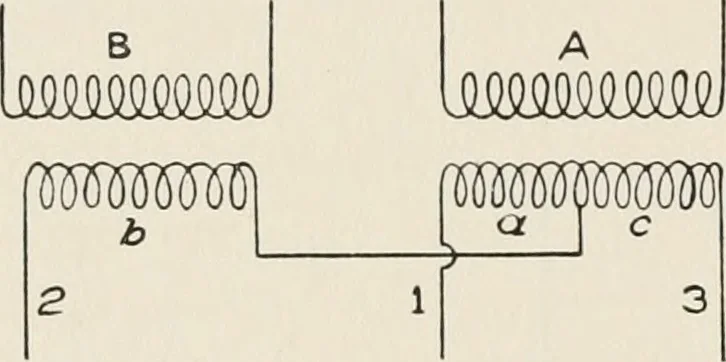

ystem and b= Ecos 30 a=c = Esm 30= But the ratios of the windings were so proportioned that this is true. Hence the e. m. f. s are 120 degreesapart and result in a balancedthree-phase circuit. A clear idea of the Scott trans-former may now be obtained asfollows: Two similar cores havesimilar… … Fig. 234. Complete Connections of ScottTransformer 274 ALTERNATING-CURRENT MACHINERY 261 Fig. 233), and the other end of which is connected to the middlepoint of the secondary winding a c, which is wound on the other core.The terminals of the winding a c are connected to the remainingtwo of the…
