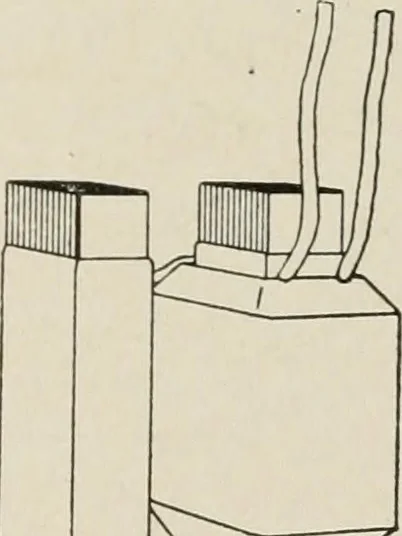

Itflj Fig. 239. Core with Upper Yoke Removed, Showing OneCoil in Position 285 272 ALTERNATING-CURRENT MACHINERY sheet steel strlj^s, or stampings. The two upright portions of thecore upon which the wire coils are placed, as shown in Figs. 237,239,
