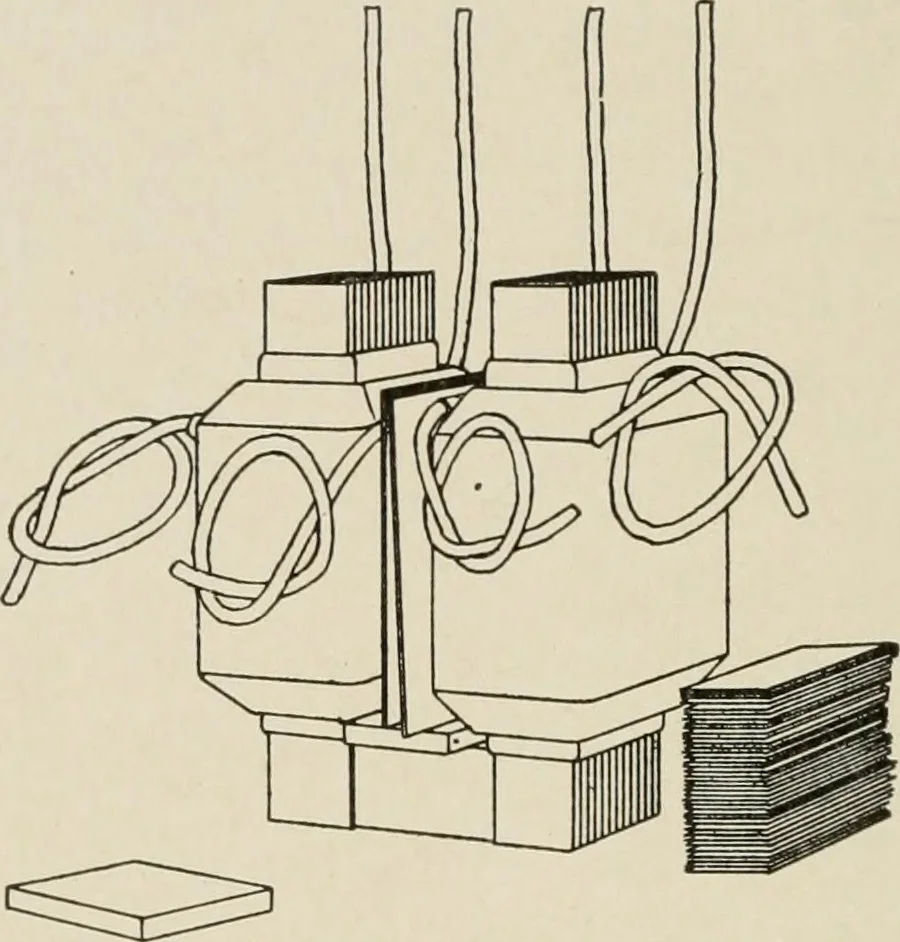

Itflj Fig. 239. Core with Upper Yoke Removed, Showing OneCoil in Position 285 272 ALTERNATING-CURRENT MACHINERY sheet steel strlj^s, or stampings. The two upright portions of thecore upon which the wire coils are placed, as shown in Figs. 237,239, … Fig. 240. Both Transformer Coils in Position, Showing•Laminated Strips Which Form the Upper Yoice of Core and 240, are called the Jimbs of the core. The short horizontal partsof the core that do not have windings of wire upon them are calledyokes. These yokes serve to complete the magnetic circuit,…
