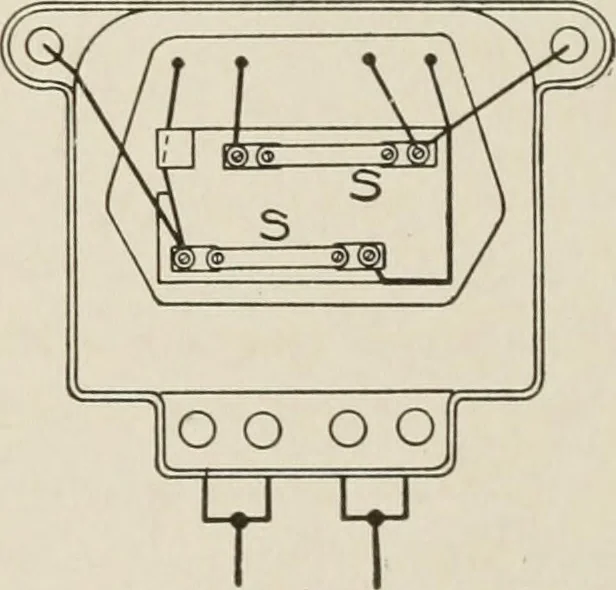

SecondariesinSeriesorThree-wire Fig. 243 … Secondarfesin Parallel Plan of Transformer Showing Strap Connections for ArrangingPrimaries in Series or Parallel Fig. 243 is a top view of the transformer with the cover of itscase removed showing the terminals of the secondary coils, and the 287 274 ALTERNATING-CURRENT MACHINERY porcelain…
