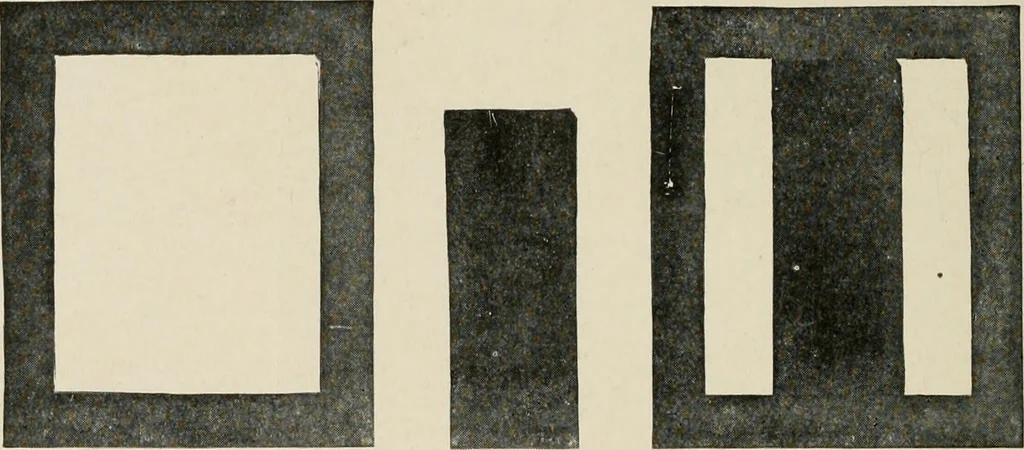

f the oil withwhich the containing tank is filled. Fig. 254 shows clearly thedisposition of the coils, mica insulation, and oil ducts, with respectto the central limb. The core, as shown in Fig. 255, contains four magnetic circuits inparallel, each circuit consisting of a Separate core similar in… … Fig. 249. Core Punchings for Crocker-Wheeler Remek-Type Transformer bled together they interlock to form a common central limb uponwhich the primary and the secondary coils are placed. The four remaining legs consist of punchings of equal width.These occupy a position surrounding the coil at equal…
