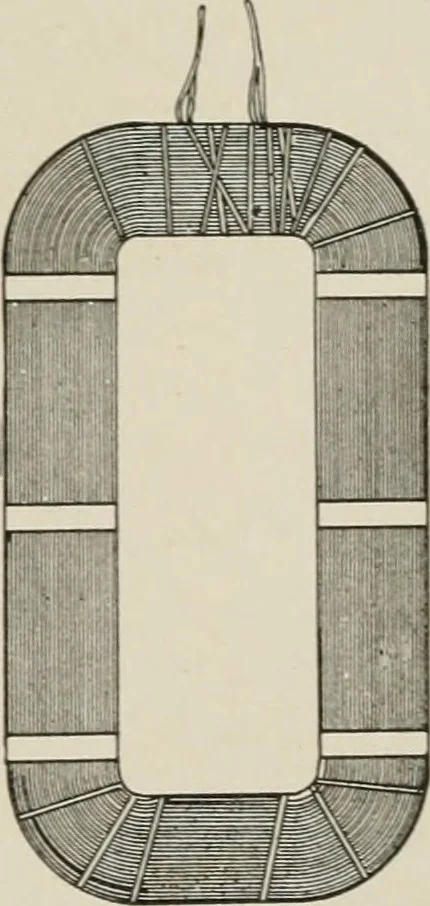

Standard frequenciesare 25, 40, and 60 cycles. Shell Type. In shell-type transformersthe coils, both primary and secondary, are usu-ally wound in pancake form on formers, asshown in Figs. 260 to 263. The coils in smalltransformers are wound with round wire, but inthe larger sizes flat rectangular… … Fig. 263. Method of Binding up Pancake Strip Coils 297 284 ALTERNATING-CURRENT MACHINERY and other conditions. The thin pancake coils are then treatedwith an insulating compound and wound with a number of layersof tape according to the voltage for which they are designed, eachlayer being given…
