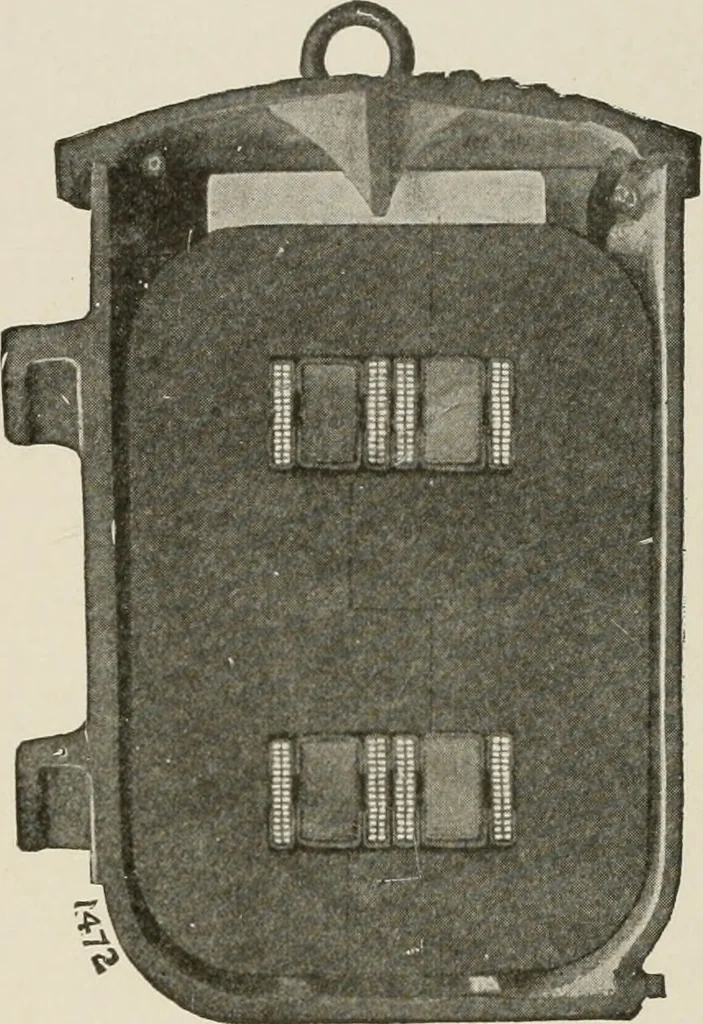

eing protected by thickstrips of insulating material. In this air-blast transformer, air passagesor ducts are provided between the layers of the coils, and at intervals,between the core stampings, asshown in the figure. The airfor cooling the transformer isadmitted at the base, andpasses vertically… … Fig. 265. Sectional View of Fort Wayne Shell-Type Transformer
