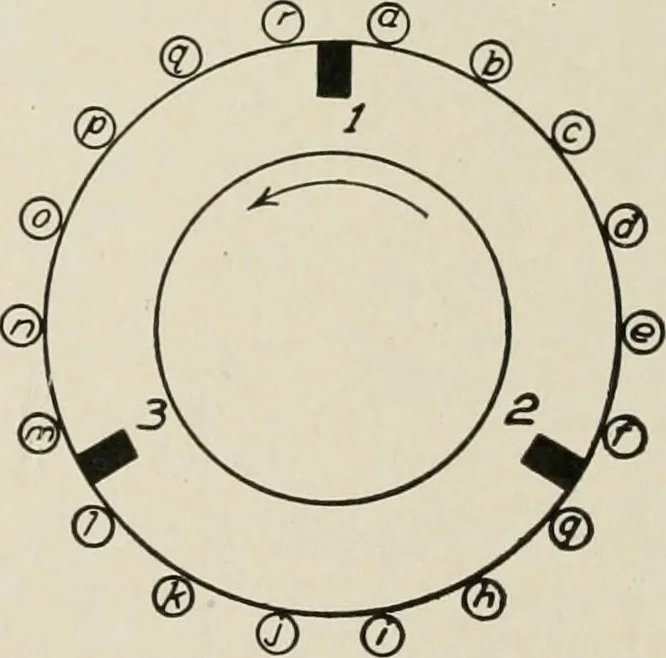

six-ringconverter. Fig. 301 represents a direct-current ring-wound armature having18 conductors, each conductor representing a turn of wire. Con-sider the conductor a. This conductor has an alternating electro-motive force induced in it as the armature rotates. Let this alter-nating electromotive… … Fig. 301. Diagram of a D. C. Ring-Wound Armature 347 332 ALTERNATING-CURRENT MACHINERY induced in conductor a, but is behind it in phase by the angle= 20 360°
