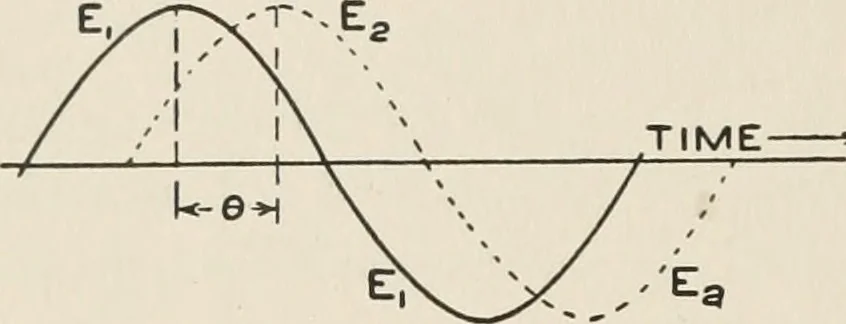

ates of the curves Ei and E^, Fig. 23. Theelectromotive force represented by the curve Ej reaches its maximumvalue before the electromotive force represented by the curve E^.The electromotive force Ei is said to lead, or to be ahead of, the *The unit of angle chiefly used in mechanics and in all… … Fig. 23. Curves of Two Related E. M. F.s electromotive force E^ in phase. Conversely, the electromotive forceE^ is said to lag behind or to follow the electromotive force El in phase. The same twoelectromotive forces E^ and E^are also represented by thelines OE^ and OE^ in the clockdiagram, Fig.…
