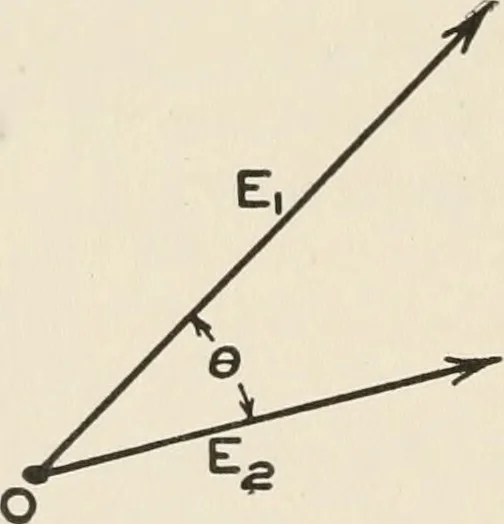

tromotive force Eiis ei= Ei sin ait,then the actual value of the electromotive force E^, which lags d de-grees behind E^, is e^= E^ sin (cot—0). Similarly, if E^ were takenas the reference line in the diagram, its actual value would be e^= Ei sin cot, and the value of Ei would then be e\ =Ei sin… … Fig. 24. Clock Diagram ofE. M. F.s for Fig. 235
