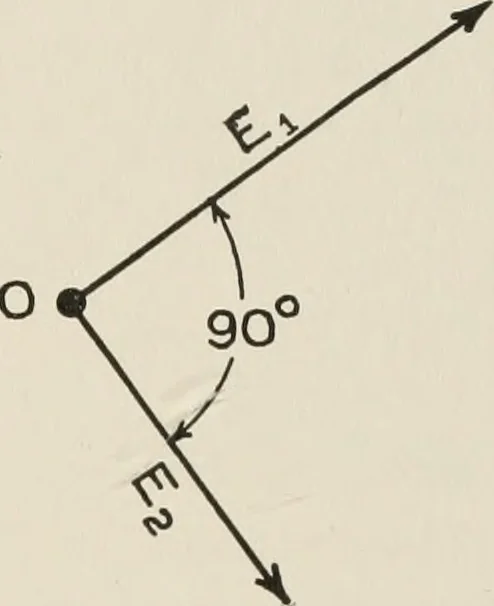

in Figs. 22-25 for the case of two harmonicelectromotive forces Ei and E2, applies equallyto the case of two harmonic currents 7i andI2 and to the case of an electromotive forceEl and a current Ii. Thus if in the clockdiagram. Fig. 20, E represented a harmonicelectromotive force having a maximum… … Fig. 26. Diagram of E. M. F..S of Fig. 23 in Quadrature ^v i= 10sin(wi——) Fig. 27. Diagram of E. M. F.s ofFig. 23 When in Opposition -^-:^ Addition of Harmonic ElectromotiveForces and Currents. Consider two har-monic electromotive forces of which thesuccessive instantaneous values e^ and e^ are…
