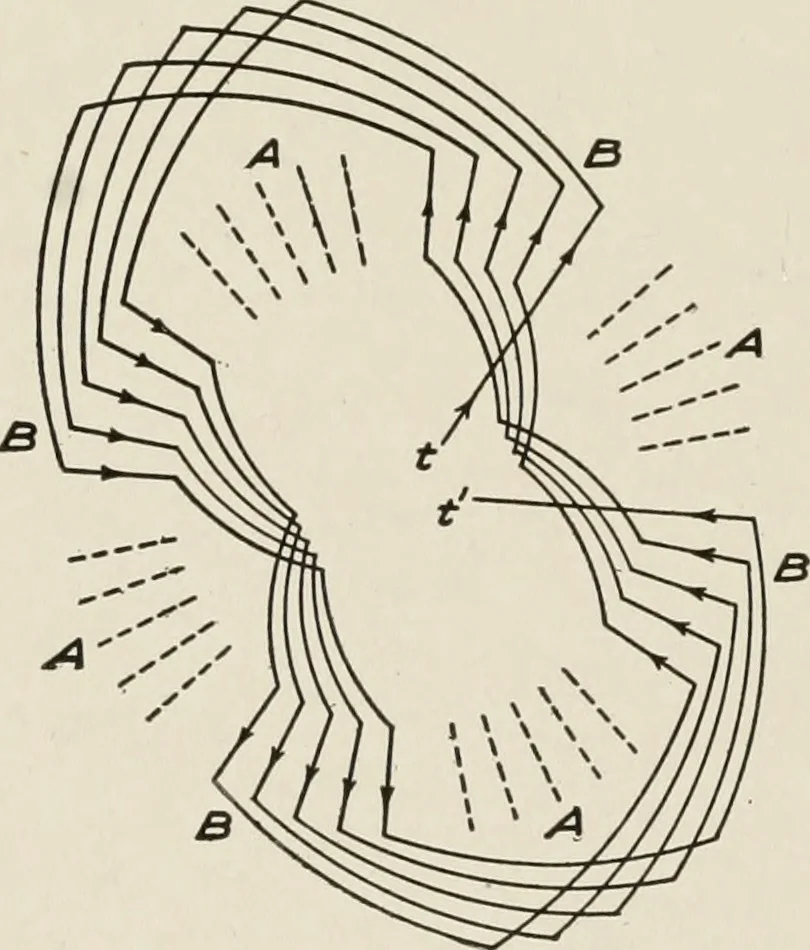

the slots s,Fig. 327, m a manner exactlysimilar to the arrangement ofthe ivindings of the two-phaseor three-phase alternator arma-ture according as the motor isto be supplied with two-phaseor three-phase currents. Two-Phase. Fig. 329 showsan end view of a four-pole two-phase induction motor. Inthis… … Fig. 330. Diagram of One-Half the StatorConductors of Fig. 329 890 ALTERNATING-CURRENT MACHINERY 373 nectlons of half the stator conductors are shown in Fig, 330. Inthis figure the straight radial lines represent the conductors whichlie in the slots of the stator, and the curved lines represent the…
