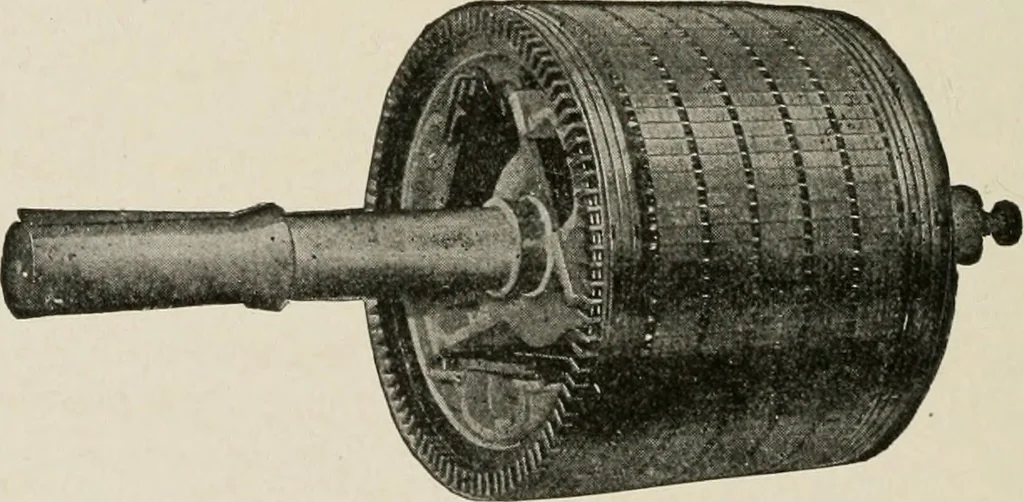

Fig. 342. Squirrel-Cage Type of Rotor Fig. 342 is a squirrel-cage rotor. Fig. 343 is a rotor woundwith insulated wire, forming what is called a definite*, or ijolar,winding. The terminals of this winding are connected to a start-ing resistance mounted inside of the rotor. A switch is arranged… … Fig. 343. Rotor with Definite or Polar Winding with Starting Resistance Inside Core the rotor. This rod terminates in a small handle or knob at the endof the rotor shaft as shown in Fig. 343. Fig. 354 shows a completethree-phase induction motor with the knob and rod for operatingthe internal…
