Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 483

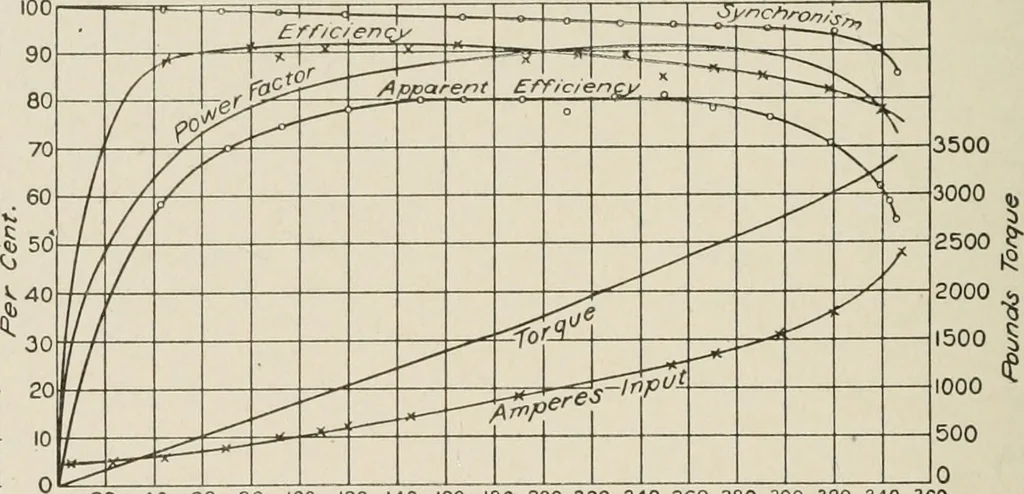

etween 340 and 360horse-power shows that the maximum power which the machinecan develop is about 350 horse-power. There are three scales ofordinates, namely, amijeres input, per cent, and pouruls torque. The ordinates of the curve marked synchronism are measuredon the per cent scale, and they… … 20 40 60 60 100 120 140 160 ISO 200 220 240 260 280 300 320 340 360Horse Fower Output Fig. 362. Performance Curves of a 175-H. P. Thrce-Phase Induction Motor The ordinates of the curve marked torque are measuredon the pounds torque scale, and they represent the torque developedby the motor at…
Electrical engineering
