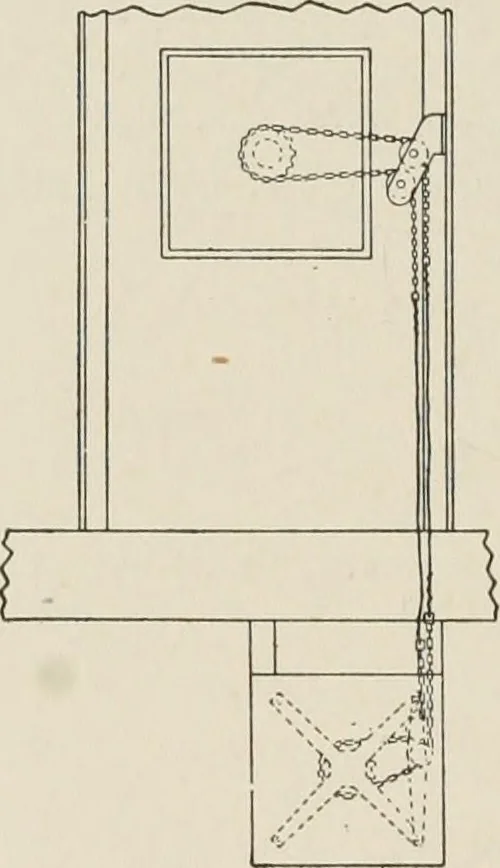

unted underneaththe floor upon which the switchboard stands.The rheostat is operated by means of sprocket-wheels and chainwhich are moved by a hand-wheel on the switchboard. SWITCHBOARDS Alternating-current switchboards difi^er from direct-currentswitchboards as follows: (a) On account of the many… … Fig. 363. Diagram Showing Switchboard Control for Large Rheostats 438 ALTERNATING-CURRENT MACHINERY 421 (b) Because of complications associated with the use of anauxiUary direct-current generator for exciting the field magnets ofalternators. (c) Because of the frequent use of extremely high…
