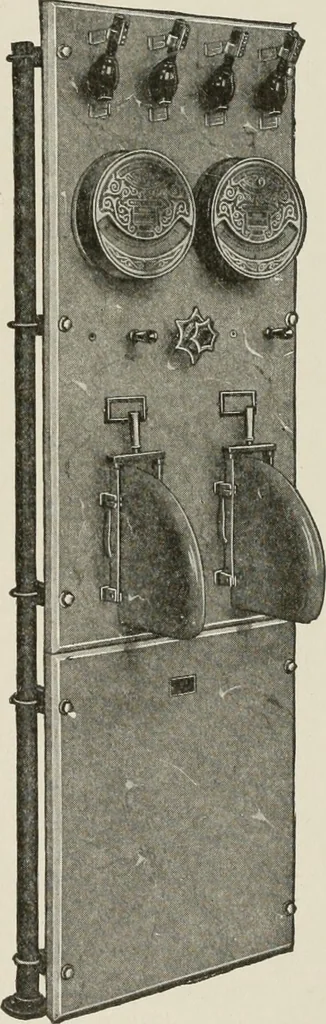

or more generator panels and fifteen ormore feeder panels are erected side byside. The panels of a switchboard areusually erected and wired completely atthe factory, and all the instruments areattached. After thorough inspection andtesting, they are shipped to their desti-nation, the instruments… … Fig. 364. Standard Switchboard for Single-Phase Generator and Two Feeder Circuits 439 422 ALTERNATING-CURRENT MACHINERY attached to the marble or slate panels. In many cases the appara-tus itself is located behind the board, the hand-wheel or operatinglever only, being placed on the front of the…
