Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 501

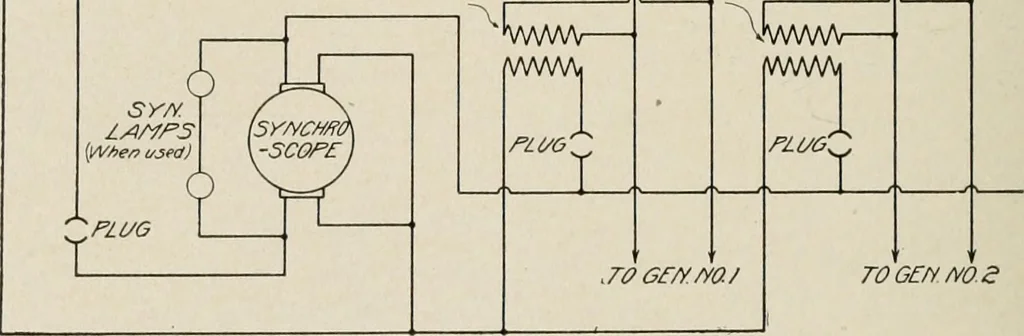

Fig. 376. Lincoln Synchroscope B/^S BA/fS ^WH^V01TAG£ VOlTAGf: 9 9 VOlTAGr T/TAmroff/ifff 1 TffAN5ro/fr7f/r, .vwwv (WVWVi … roG£/v/voa Fig. 377. Wiring Diagram for a Synchroscope for Single-Phase or One Phase of Poly-phase Circuit running at a slightly greater frequency than B, the pointer rotates ina certain direction indicating at each instant the changing phase-difference between A and B. When machine A is running at…
Electrical engineering
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
