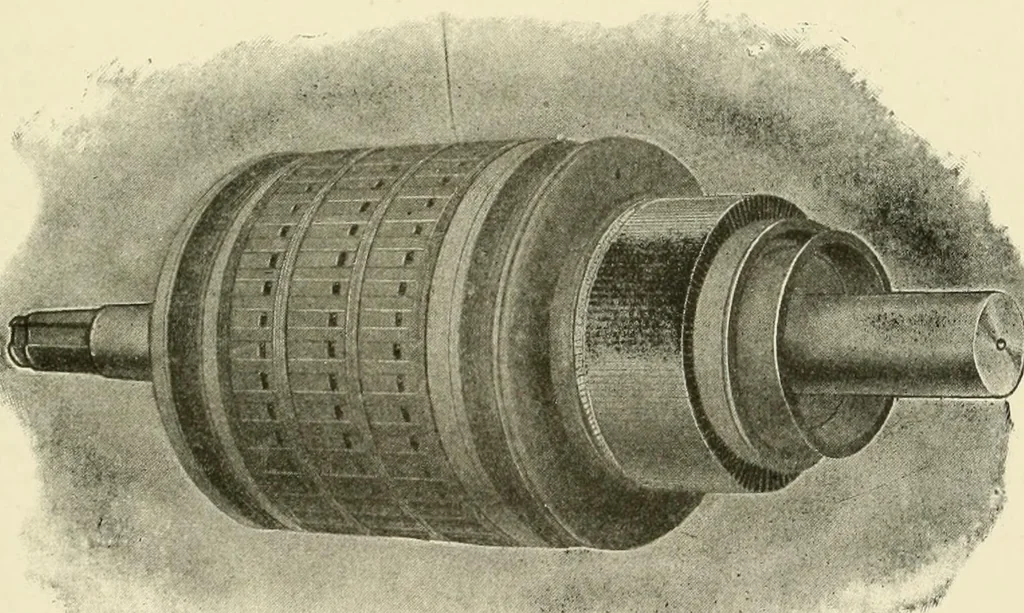

other to 4;the terminals of the second coil to 11 and 5; andthus around the core until the connections arecomplete. This is a wave-w4nding and, when connected in this way andwith the brushes placed as shown, there are two parallel pathsthrough the winding from brush to brush. Each path is… … Fig. 39. Armature Complete Commutator. The commutator is shown in Fig. 38. It doesnot differ essentially from the usual form and consists of 123 harddrawn copper bars, separated by soft mica and assembled in cy-lindrical form. These bars are held together in the manner usuallyfollowed with this…
