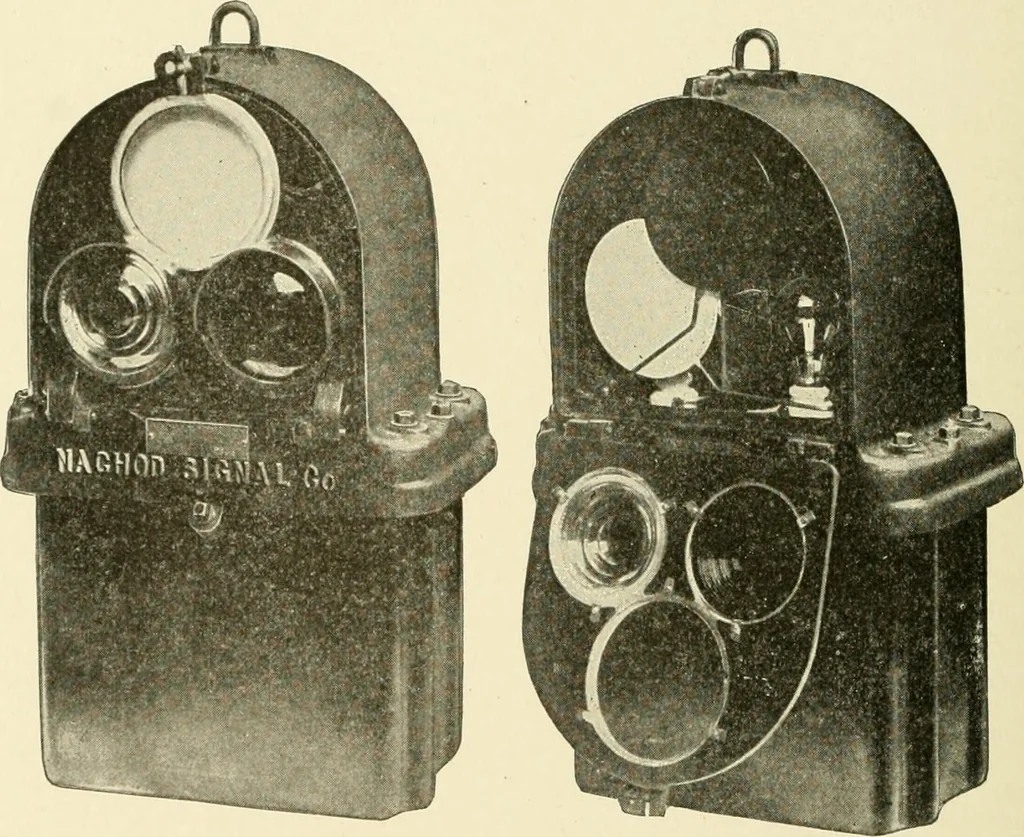

not the block is clear. The lamps areplaced in a weatherproof box with a glass window. Red glass issometimes used to suggest danger. A double-throw switch is con-nected with the lamps at each terminal of the section, as shown inthe figure. The switches have no central position, the knife… … Fig. 215. Sit?nal Box—White DiskDisplayed Fiff. 216. Signal Box with FrontCover Down ing either one of the switches. A motorman on reaching a sectionof track, finding the lamps not burning, throws the switch. Lampsnow burn in each switch box and show that the section is in use.On arriving at the…
