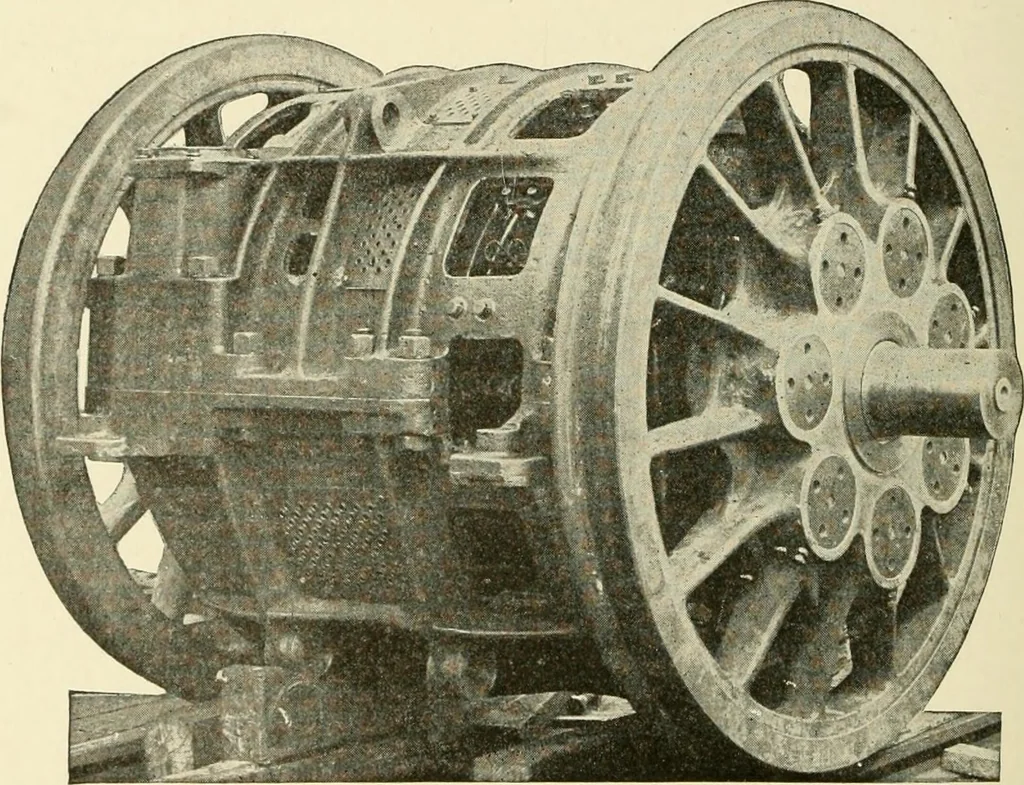

n overcome and a perfectly satisfactory motor isnow available. These motors have been in use for years on theNew Haven Railroad and in other places with entire success. The early New Haven locomotives consisted of a body mountedupon two swivel trucks each containing two 250-h. p.,… … Fig. 254. Motor Mounted on Its Axle of the New York Central Railroad. Fig. 255 shows the truck with-out motors and Fig. 256, the truck complete. The field frame withthe armature is spring-supported from a frame which rests on thejournal boxes, as shown in Fig. 257. The armature shaft is a…
