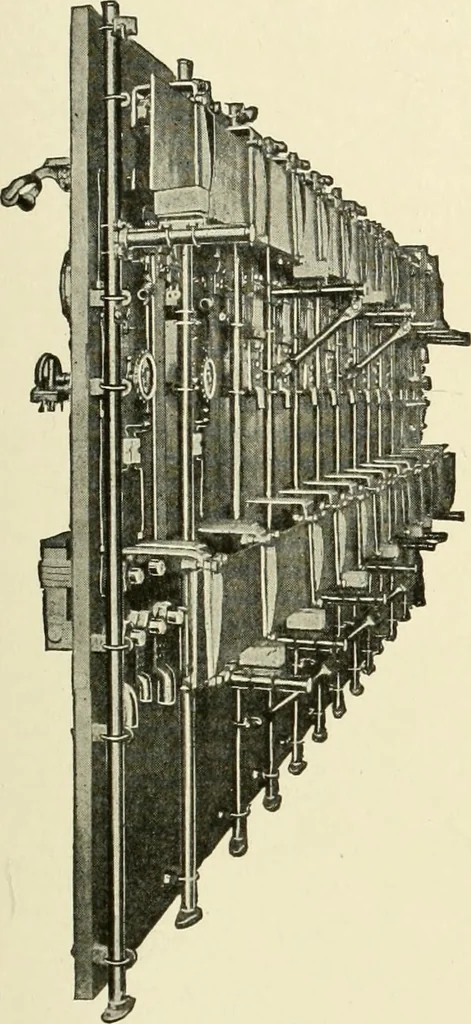

be somany installations of small plantsthroughout this country, on farmsai:d residences where central sta-tion service is not available, thata great demand has arisen for pan-els that are extremely simple andcheap. Equipment for Small Board.The minimum equipment possi-ble is: 1 Lamp 1 Lever switch… … Fig. 12. Bnck View of Switchboard Shown in Fig. 11 Giving Location of Busbars Courtesy of General Electric Company give the necessary protection. A little better panel is obtained by substituting a voltmeterfor the lamp and arranging the panel supports so that the fieldrheostat can be mounted…
