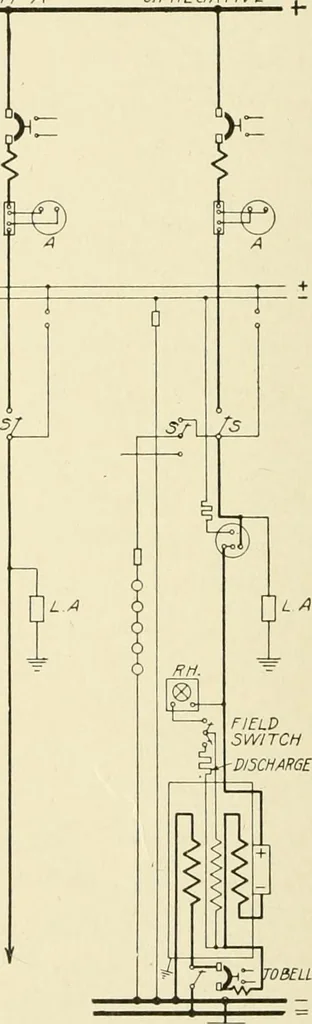

TO FEEDERS TO FEEDERS … Fig. 23. Wiring Diagram for Railway Switchboard witli D. C. Feeder Circuits the advent of the high voltage direct-current railway, there have beena number of changes necessary in the switching equipment, and thek)w voltage and high voltage boards will bear separate discussion. 126 SWITCHBOARDS 29…
