Cyclopedia of applied electricity : a general reference work on direct-current generators and motors, storage batteries, electrochemistry, welding, electric wiring, meters, electric lighting, electric railways, power stations, switchboards, power transmission, alternating-current machinery, telegraphy, etc. (1916)
American Technical Society · Chicago : American Technical Society · leaf 181

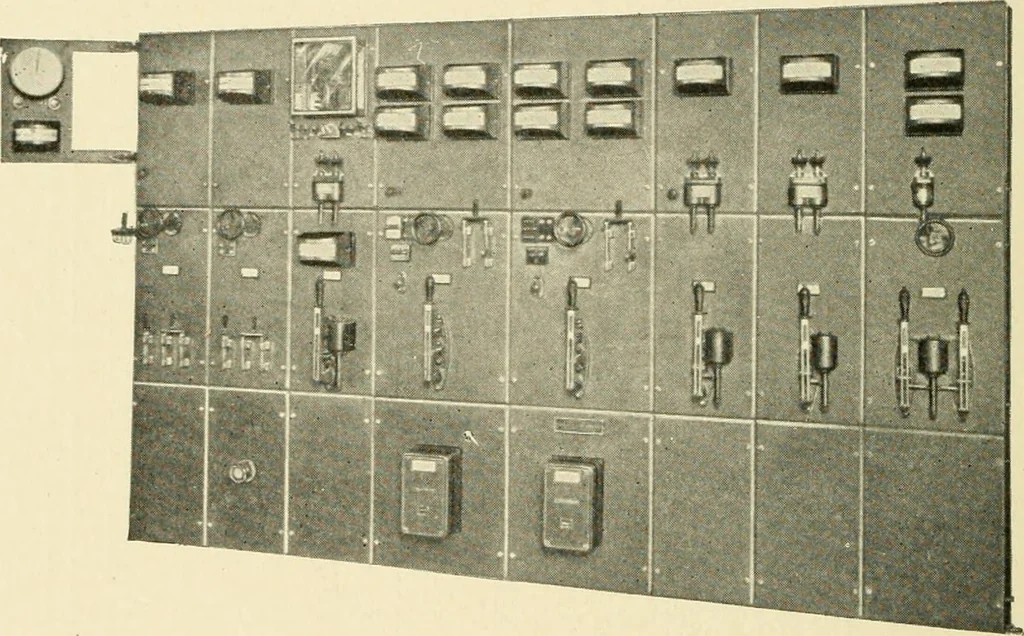

e regulators are mounted on the feeder panels.These instruments do not properly belong to the switchboard equip-ment, but because of convenience in connections and because oftheir similarity to the switchboard voltmeters, are mounted on thepanels. Standard Central Station Equipment. Wiring Diagram.… … Fig. 39. Switchboard Equipment for Standard Central StationCourtesy of General Electric Company variations which may be made to meet special requirements orconditions. Switchboard. Fig. 39 shows the front view of a switchboardconsisting of: 1 Swinging bracket, containing—1 Synchronizer 1…
